| Price | negotiable |
| MOQ | 1 piece |
| Delivery Time | on request |
| Brand | MTL |
| Place of Origin | USA |
| Certification | CE |
| Model Number | MTL5521 |
| Packaging Details | standard carton packing |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
| Input voltage | 20 to 35V dc | Place of Origin | USA |
| Maximum power dissipation within unit | 90mA at 24V | Packaging Details | standard carton packing |
| Model Number | MTL5521 | Supply Ability | 100pcs per month |
| Certification | CE | Brand Name | MTL |
| Payment Terms | T/T | Response time | Output within 10% of final value within 100ms |
| Price | negotiable | Delivery Time | on request |
| Minimum Order Quantity | 1 piece | Power dissipation within unit | 1.4W at 24V |
| Number of channels | One | LED indicator | Yellow: output status, on when output active |

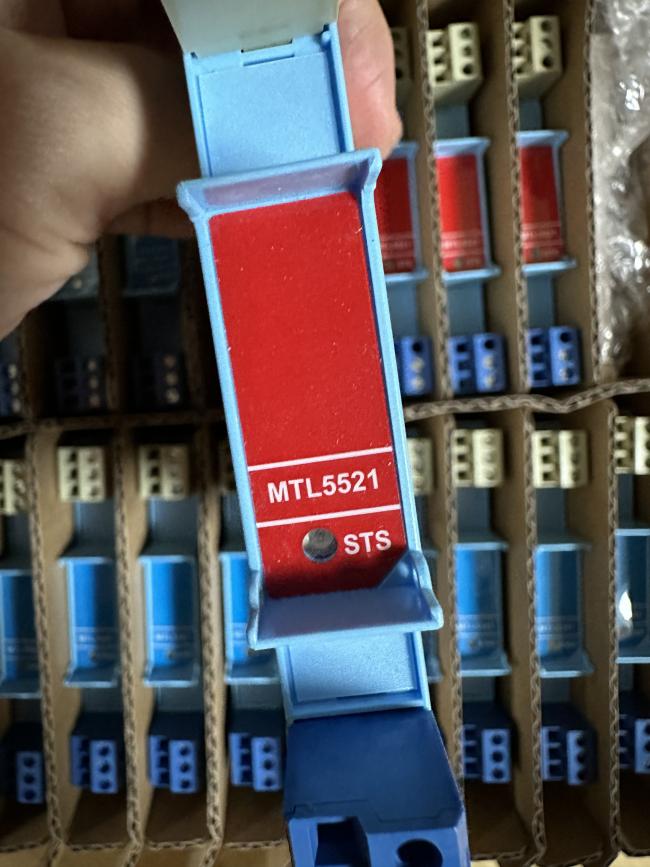

The MTLx521 and the MTL4521L are loop-powered modules which enable a device located in the hazardous area to be controlled from the safe area. They can all drive a certified intrinsically safe low-power load, as well as non-energy-storing simple apparatus such as an LED.
SPECIFICATION
Number of channels:One
Location of load:Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location
Input voltage:20 to 35V dc
Hazardous-area output (MTLx521):Minimum output voltage: 13.6V at 48mA；Maximum output voltage: 24V from 180Ω；Current limit: 48mA minimum
Hazardous-area output (MTL4521L):Minimum output voltage: 11.1V at 48mA；Maximum output voltage: 24V from 232Ω；Current limit: 48mA minimum
Output ripple:< 0.5% of maximum output, peak to peak
Response time:Output within 10% of final value within 100ms
LED indicator:Yellow: output status, on when output active
Maximum current consumption:90mA at 24V
Power dissipation within unit:1.4W at 24V
Safety description (MTLx521):Uo =25V Io =147mA Po =0.92W Um = 253V rms or dc
Safety description (MTL4521L):Uo = 25V Io = 108mA Po = 0.68W Um = 253V rms or dc
