| Price | Negotiable |
| MOQ | 10 |
| Delivery Time | 5-8 working days |
| Brand | Shang Wen |
| Place of Origin | China |
| Certification | Rohs UL CE |
| Model Number | SW3FX-WN |
| Packaging Details | Internal blister box 23x23cm External carton 51x26x34cm |
| Payment Terms | T/T |
| Supply Ability | 100000+pcs+per month |
| Place of Origin | China | Packaging Details | Internal blister box 23x23cm External carton 51x26x34cm |
| Gender | Female/Power-in | Model Number | SW3FX-WN |
| Supply Ability | 100000+pcs+per month | Certification | Rohs UL CE |
| Type Of Terminals | Screw type | Name | Powercon Female Plug Connector |
| Brand Name | Shang Wen | Payment Terms | T/T |
| Contacts | 3pin | Price | Negotiable |
| Delivery Time | 5-8 working days | Minimum Order Quantity | 10 |
| Conductor Material | Cu Alloy | Shell Material | Polyamide |
| Connecting Mode | Fast rotating connection | Application | For power connection |
| IP Grade | IP65 |

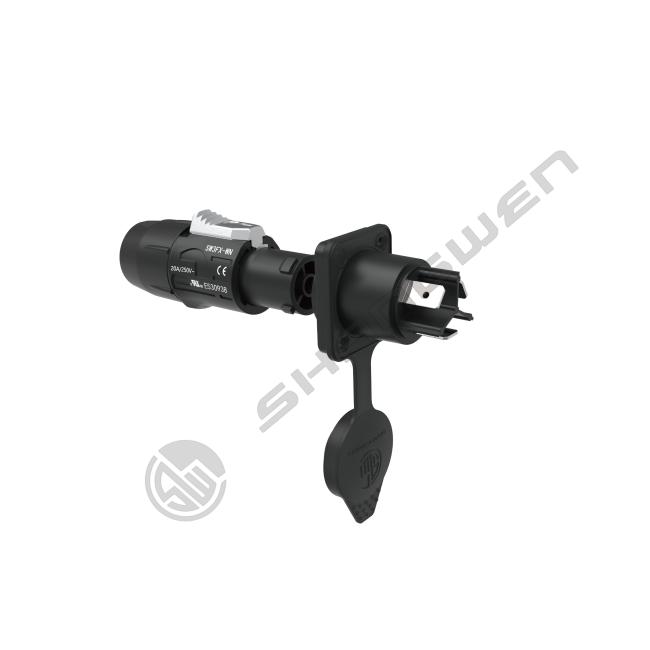

Outdoor IP65 Waterproof Powercon Female Plug 3 Conductor 20A 250V Power-In Screw Terminals For Led Screen Cabinet

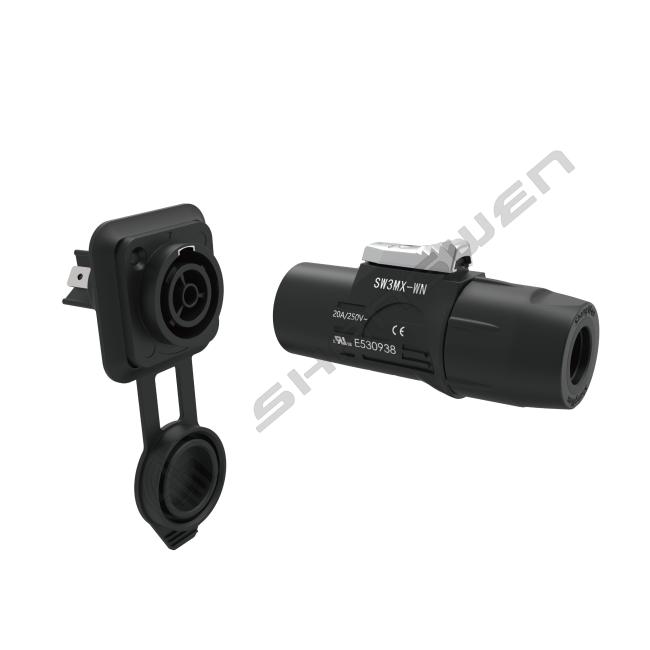

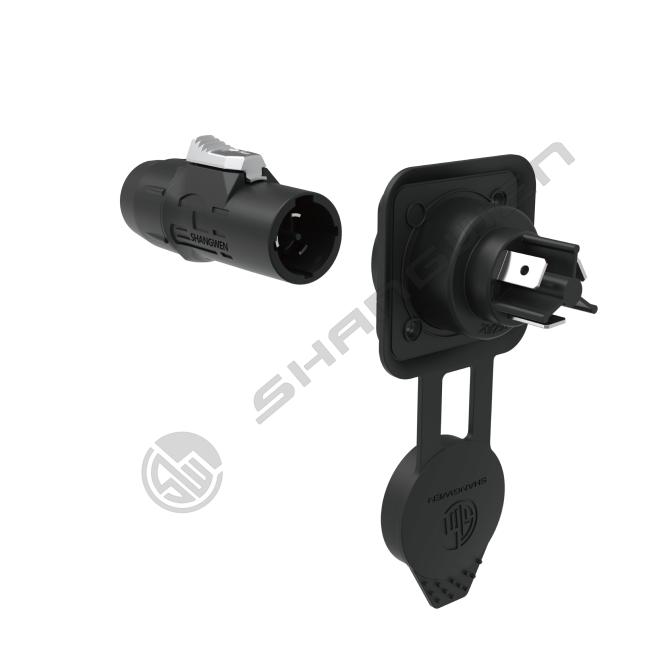

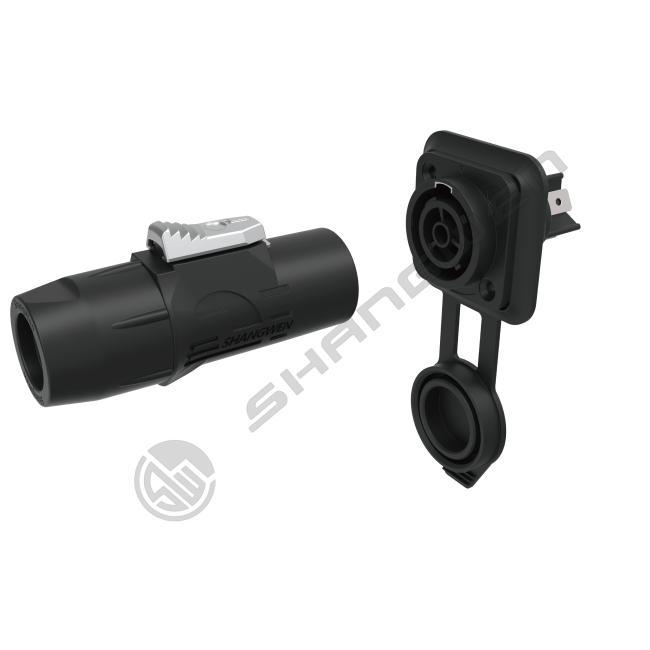

PowerCon Adapter Connector 3Pin 20A 250V Male Female Panel Mount Head Speaker Power Connector Waterproof for Stage Light Power,Audio Video Equipment and More(Input)
Mechanical parameters
| Service life | ＞1000 times |
| Power line | 2.5mm²(8mm-12mm) |
| Wire stripping length | 7-8mm |
| Type of terminals |
Screw
type
terminals |
| Contacts No. | 3 |
| Rated current | 20A |
| Rated voltage | 250V AC |
| Contact resistance | ≤5mΩ |
| Dielectric strength |
4000V DC |
| Insulation resistance |
＞1000MΩ |
| Shell | PA |
| Conductor | Cu alloy |
| Conductor surface | Ag |
| Flame-retardant grade | UL94-V0 |
| Temperature range | -30°C~+80°C |
| IP grade | IP65 |
SW3FX-WN is widely used in outdoor LED display power connection.
With
the
continuous
development
of
the
entertainment
industry,
the
demand
for
products
with
connected
systems
is
also
increasing.
The
sealed
connector
that
can
be
adapted
for
outdoor
use
came
into
being.
To
this
end,
Shangwen
has
developed
a
new
series
of
outdoor
connectors,
which
includes
power
connectors,
signal
connectors
and
audio
connectors.
These
rugged,
sealed
connectors
are
IP65
rated
for
outdoor
protection.
The
shell
part
is
made
of PA6
material,
with
stable
electrical
performance,
good
pressure
resistance,
high
temperature
resistance,
explosion
resistance
and
corrosion
resistance.
The
contact
part
is
made
of beryllium
copper
material
imported
from
the
US
and
plated
with
silver,
which
has
strong
contact
stability
and
can
strengthen
the
control
of
temperature
rise.
Using rotary locking design, easy to operate, stable and reliable !
Packing
1.
Why
do
we
choose
SHANG
WEN
supply?
A:We
promise:All
of
our
products
are
power
regulated.The
output
voltage
and
current
are
true
one.all
with
good
quality
and
competitive
price.We
assure
you
timely
delivery
by
keeping
80%
standard
products
inventory
and
best
after-sale
service.All
have
done
100%
long
time
ful-load
aging
test/
burn-in
test
before
shipment.
2.
What
is
the
applicable
range
of
this
product?
A:Suitable
for
fixed
&
rental
installation
display
screen,
stage
lighting
and
sound,
security,
new
energy,
medical
etc.
3.
Can
your
products
pass
CE/ROHS
certificate?
A:Yes,our
products
meet
the
industrial
standards,like:CE/UL/RoHS/CQC.
4.
Accept
sample
order
?What
is
your
minimum
order
quantity?
A:Trial
order
or
sample
order
is
accept,but
same
cost
as
bulk.
5.
What
are
the
shipping
ways
you
can
offer?
A:By
air/sea
according
to
customers'requirements.
6.
Do
your
products
come
with
warranty?
A:Yes,we
promise
1-3
year
warranty
according
to
different
model.
