| Price | Negotiable |
| MOQ | 1 |
| Delivery Time | 3 days, depend on the order quantity |
| Brand | VEIKONG |
| Place of Origin | China |
| Certification | CE |
| Model Number | VFD500-PV |
| Packaging Details | Carton and Wooden Box |
| Payment Terms | Western Union, T/T, L/C, D/A, D/P, PayPal |
| Supply Ability | 15000pcs per Month |
| Place of Origin | China | Warranty | 18 Months |
| MPPT | 99.6% | Packaging Details | Carton and Wooden Box |
| Product Name | 7.5kw 10hp 15kw 20hp 18.5kw 25hp Solar Water Pump Controller | GPRS | Support |
| Model Number | VFD500-PV | Supply Ability | 15000pcs per Month |
| Certification | CE | Brand Name | VEIKONG |
| Payment Terms | Western Union, T/T, L/C, D/A, D/P, PayPal | Price | Negotiable |
| Delivery Time | 3 days, depend on the order quantity | Minimum Order Quantity | 1 |
| Output | Triple | Power | 7.5kw/15kw/18.5kw |

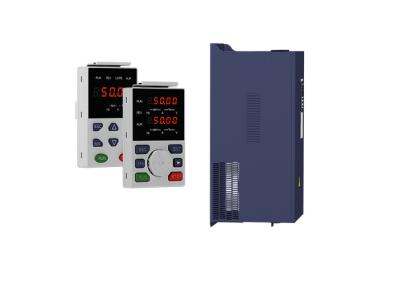

380V 7.5kw 10hp 15kw 20hp 18.5kw 25hp MPPT Solar Pumping Inverter Controller
Key Feature
1, Our solar pump inverter Auto mppt tracking >99%, auto tracking better than fixed Mppt.
Electrical Specifications
| 220V | 380V | |
| Max input DC voltage | 450V | 810V |
| DC voltage range | 150~450VDC | 300~810VDC |
| Normal working DC voltage | 260V-400V | 400V-650V |
| Recommended input mppt voltage | 330V | 550V |
| MPPT efficiency | >99% | |
| Rated output voltage | 1/3-phase 220VAC | 3-phase 380-480VAC |
| Output frequency range | 50/60Hz | |
| Max efficiency of the machine | 99% | |
| Ambient temperature range | -10 °C~50 °C, derating if the temperature is above 40 °C | |
| Cooling method | Air cooling | |
| Protection degree | IP20/IP21 | |
| Altitude | Below 1000m; above 1% for every additional 100m. | |
| Standard | CE/ROHS | |
Model Range
|
Drive model |
Max DC input current (A) |
Rated output current (A) |
Applicable water pump (kW) |
|
VFD500M-40T00150-PV |
6.1 |
3.7 |
1.5 |
|
VFD500M-40T00220-PV |
7.1 |
5 |
2.2 |
|
VFD500M-40T00400-PV |
16.5 |
9.4 |
4 |
|
VFD500M-40T00550-PV |
23.9 |
13 |
5.5 |
|
VFD500M-40T00750-PV |
30.6 |
17 |
7.5 |
|
VFD500-40T00150-PV |
6.1 |
3.7 |
1.5 |
|
VFD500-40T00220-PV |
7.1 |
5 |
2.2 |
|
VFD500-40T00400-PV |
16.5 |
9.4 |
4 |
|
VFD500-40T00550-PV |
23.9 |
13 |
5.5 |
|
VFD500-40T00750-PV |
30.6 |
17 |
7.5 |
|
VFD50040T01100-PV |
39.2 |
25 |
11 |
|
VFD500-40T01500-PV |
49.0 |
32 |
15 |
|
VFD500-40T01850-PV |
57 |
37 |
18.5 |
|
VFD500-40T02200-PV |
69 |
45 |
22 |
|
VFD500-40T03000-PV |
91 |
60 |
30 |
|
VFD500-40T03700-PV |
114 |
75 |
37 |
|
VFD500-40T04500-PV |
146 |
90 |
45 |
|
VFD500-40T05500-PV |
190 |
112 |
55 |
|
VFD500-40T07500-PV |
237 |
152 |
75 |
|
VFD500-40T09000-PV |
273 |
176 |
90 |
|
VFD500-40T11000-PV |
319 |
210 |
110 |
|
VFD500-40T13200-PV |
389 |
253 |
132 |
|
220V single phase or three phase level |
|||
|
VFD500-20T00075-PV |
6.7 |
4.5 |
0.75 |
|
VFD500-20T00150-PV |
9.9 |
7 |
1.5 |
|
VFD500-20T00220-PV |
14.1 |
10.6 |
2.2 |
|
VFD500-20T00400-PV |
22.6 |
17 |
4 |
|
VFD500M-20T00150-PV |
9.9 |
7 |
1.5 |
|
VFD500M-20T00220-PV |
14.1 |
10.6 |
2.2 |
Solar Water Pump Wiring Diagram

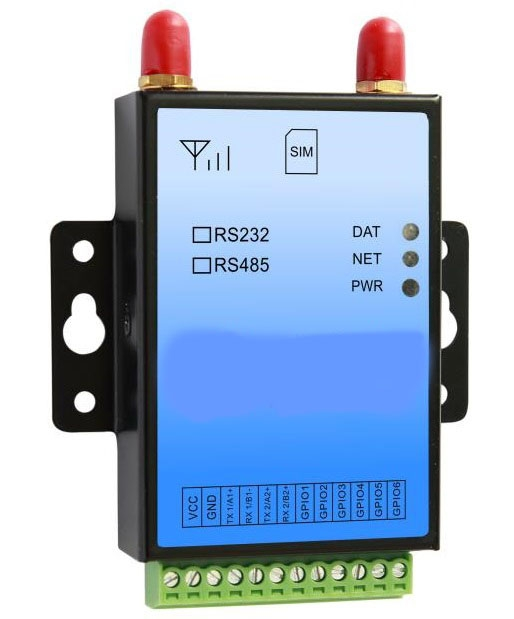

Support GPRS
Product Application
FAQ:
1. What should be noticed when installing inverter?
Put
the
product
in
a
place
where
is
well
ventilate,
cool,
dry
and
water-proof.
Do
not
stress
or
put
foreign
objects
into
the
inverter.
Remember
to
turn
on
the
inverter
before
turn
on
the
appliance.
2. Do we need to set the parameter before using ?
No
need,
our
preset
parameters
can
already
meet
your
normal
use.
And
our
inverter
is
AI
intelligent
working.
If
you
need
to
adjust
the
parameters
yourself,
you
can
do
it
in
a
few
simple
steps.
3. What is your main market?
Our
brands
are
well
known
in
Europe,
Africa,
Middle
East,
Southeast
Asia
and
South
America.
