| Price | USD180-usd252/pc (Negotiable) |
| MOQ | 50pcs |
| Delivery Time | as confirmed |
| Brand | Junqi |
| Place of Origin | China |
| Certification | CE,ROHS, UL |
| Model Number | JP300S-540V |
| Packaging Details | suite for export |
| Payment Terms | T/T,PAYPAL |
| Supply Ability | 2000PCS/Month |
| Place of Origin | China | Packaging Details | suite for export |
| Product Name | high voltage BLDC water pump | Rated Flow rate | 3600L/h |
| Model Number | JP300S-540V | Supply Ability | 2000PCS/Month |
| Certification | CE,ROHS, UL | Ambient Temperature | -40℃~105℃ |
| Brand Name | Junqi | Payment Terms | T/T,PAYPAL |
| Price | USD180-usd252/pc (Negotiable) | Delivery Time | as confirmed |
| Minimum Order Quantity | 50pcs | Voltage | 540V |
| Model | JP300S-540V | Rated Lift | 14m |
| Protection level | IP67 | Power | 300W |
Water Pump features:
♦ Positive and negative electrode misconnection protection function;
♦ Soft start protection, small starting current;
♦ DC Brushless motor high reliability, low thermal power, motor efficiency up to 90% energy saving better;
♦ Long service life, low noise;
♦ Blocked rotation, reverse connection, low voltage, over voltage, over current, over temperature, idling protection.
Technical Data of Gearbox:
| JP300S-540V | |||||||||
| Rated voltage | Rated current | Operating voltage | Rated Power | Working environment | Working medium | Protection level | Working noise | Working life | Weight |
| DC540V | 0.56A | DC400~790V | 300W | -40℃~105℃ | 50% glycol aqueous solution | IP68 | ≤61dB ( 1m distance test) | ≥20000h | 3.2kg |

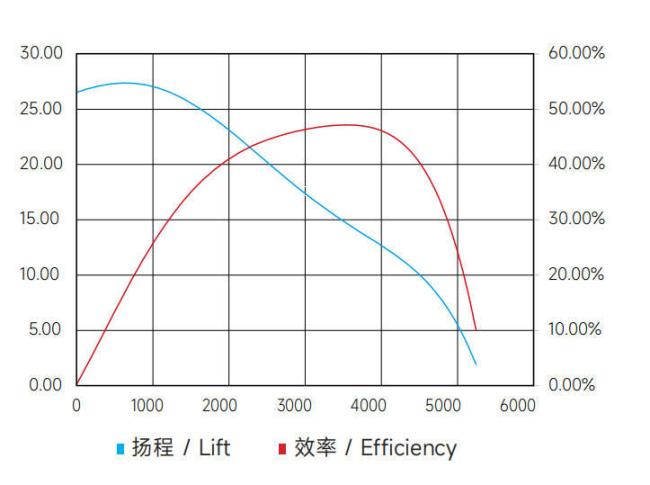

Water pump working performance curve:

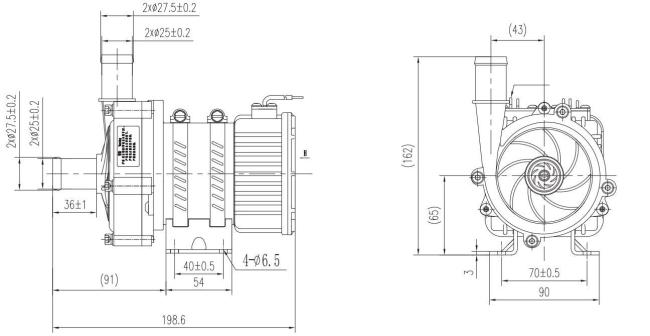

Dimensions:

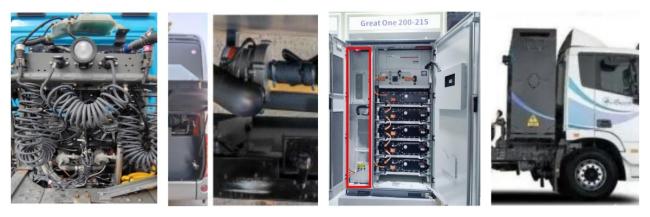

Applications:
Eelectric Car, Electric Bus, Electric Truck, Fuel Cell cooling, Commerical Vehicle Battery,Thermal Management Liquid Cooling Systme, Battery Energy Storage cooling, Data Center, Immeersion cooling, Turbocharger intercooler cooling pump, Supercomputer cooling, Electricized engineering vehicles, Fluid cooling solutions......

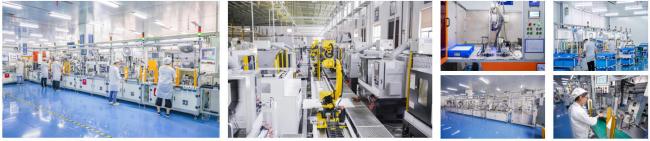

Workshop corner:
FAQ:
Q: How long is your delivery time?
A: Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
Q: How long is your warranty of pump?
A :Warranty is 2 years, can be repaired or returned free of charge if non- man-made damage.
Q: What’s the payment method?
A: Paypal,T/T,
Q: What certificates have your pumps passed?
A: All our products have passed CE, RoHS, Reach.
Parts of pumps met UL.
Q: What certificates have your company passed?
A: Our company has passed IATF16949, ISO9001,
