| Price | As per quotation |
| MOQ | 1 |
| Delivery Time | As per offer |
| Brand | Zhongyuan |
| Place of Origin | China |
| Certification | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number | Standard and Customized |
| Packaging Details | Pallet or Customized |
| Payment Terms | TT, L/C, Etc. |
| Supply Ability | Satisfy clients needs |
| Classification Certificates | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc. | Place of Origin | China |
| Chain Size | 12.5mm to 68mm; | Packaging Details | Pallet or Customized |
| Materials | ZG230-450 Casting Steel, Stainless Steel, C-Mn Steel, | Model Number | Standard and Customized |
| Supply Ability | Satisfy clients needs | Weight: | 12.7kg to 832.3kg; |
| Certification | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. | Surface treatment | sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available. |
| Brand Name | Zhongyuan | Payment Terms | TT, L/C, Etc. |
| Type | Roller type, deck welded | Technical Standard | CB/T 290-1995; |
| Price | As per quotation | Delivery Time | As per offer |
| Minimum Order Quantity | 1 |
CB/T 290 Anchor Chain Roller Wheel Ship Mooring Equipment
Description

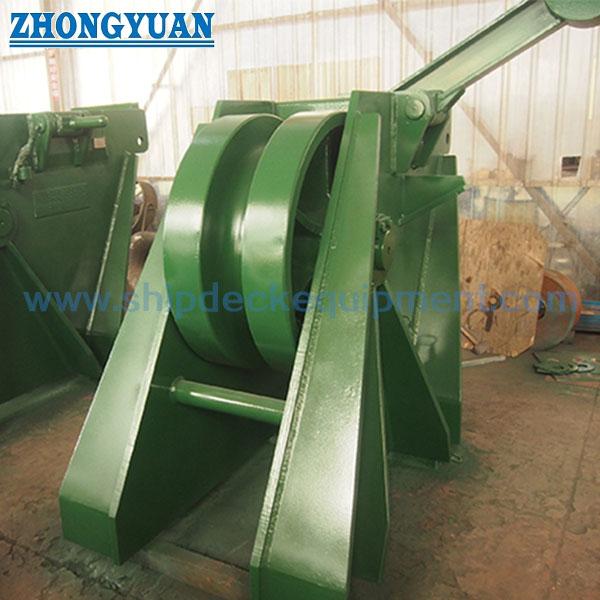

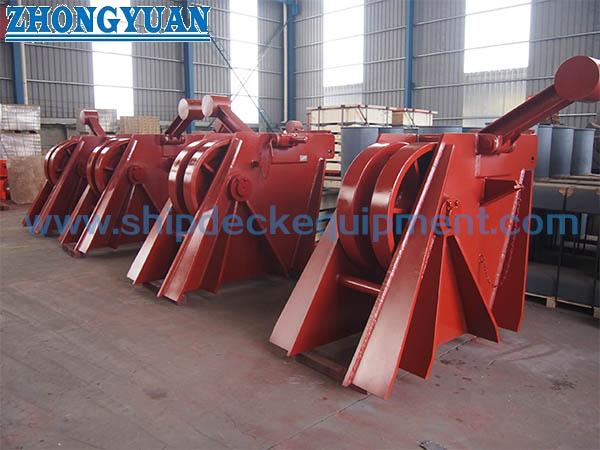

CB/T 290 anchor chain roller wheel is either welded on the deck or bolted mounting and positioned between chain hawse pipe and chain stopper. It is for the purpose that the chain can be moved smoothly and adjust the anchor position to be suit properly in the anchor recess. It can be used without combining with anchor chain stopper. The wheel is made of casting and the side wall is made of mild steel. Wheel is moving around the well-greased shaft.

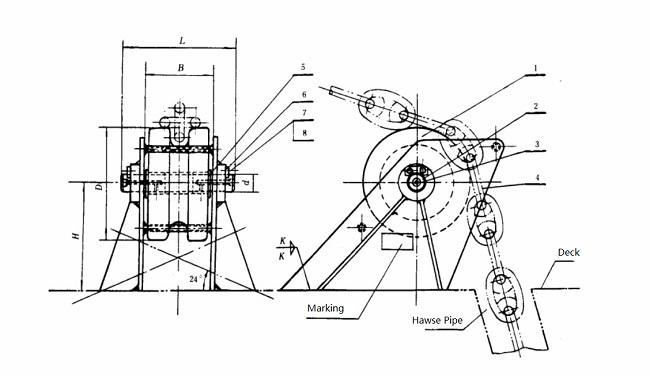

Main Technical Specifications:
Main Technical Parameters:
| Type |
Chain
Dia. (mm) |
D | d | L | B | H |
Weight (kg) |
| 14 | 12.5-14 | 154 | 26 | 164 | 94 | 150 | 12.7 |
| 17.5 | 16-17.5 | 192 | 32 | 186 | 108 | 170 | 21 |
| 20.5 | 19-20.5 | 226 | 38 | 208 | 122 | 210 | 32.6 |
| 24 | 22-24 | 264 | 42 | 236 | 142 | 240 | 50 |
| 28 | 26-28 | 308 | 48 | 262 | 160 | 280 | 74 |
| 32 | 30-32 | 352 | 54 | 292 | 178 | 310 | 104.9 |
| 36 | 34-36 | 396 | 58 | 319 | 201 | 360 | 144.4 |
| 40 | 38-40 | 440 | 64 | 349 | 219 | 390 | 189.8 |
| 44 | 42-44 | 484 | 70 | 377 | 239 | 430 | 239.9 |
| 48 | 46-48 | 528 | 74 | 405 | 259 | 470 | 305.5 |
| 52 | 50-52 | 572 | 78 | 430 | 280 | 510 | 370.3 |
| 56 | 54-56 | 616 | 82 | 466 | 302 | 540 | 453.6 |
| 60 | 58-60 | 660 | 88 | 492 | 320 | 580 | 572.3 |
| 64 | 62-64 | 704 | 94 | 526 | 342 | 620 | 687.5 |
| 68 | 66-68 | 748 | 98 | 552 | 360 | 660 | 832.3 |
