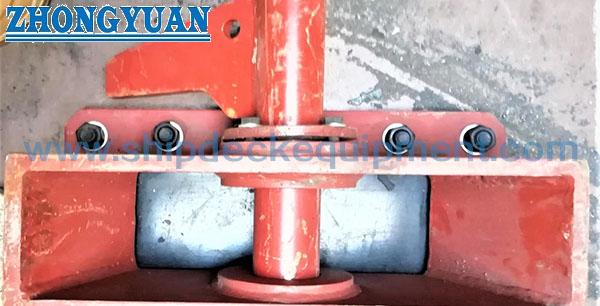

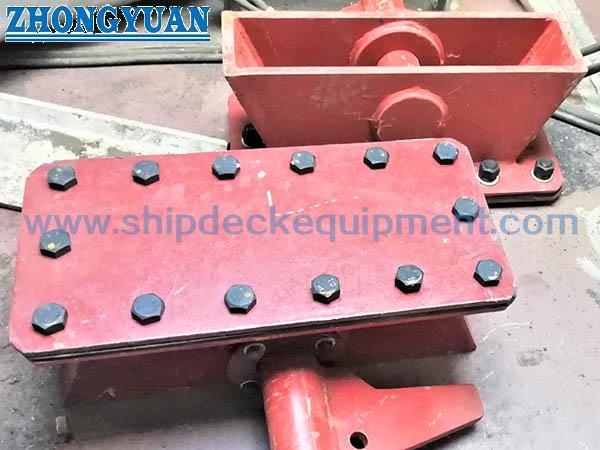

JIS F 2025 B Fixed type ships anchor chain cable clenches ship mooring equipment
Description:
JIS F 2025 B fixed type ships anchor chain cable clenches is designed for securing the anchor chains in the chain locker. It is designed for detach the anchor chain in an easy and safe way when ships in the emergency situation and need to abundant the anchor chain. The materials of JIS F 20250 anchor releaser are made from mild steel and forging steel with high tensile. The pin is designed with zerk and can be lubricate easily. For more information, you can feel free to contact us.
Main Technical Specification:
Main Technical Parameters:
|
Applicable
Anchor Chain Dia.(mm) |
L4 | L5 | B1 | B5 | H4 | D2 | D3 | R | t1 | t2 | D1 | l4 | l5 |
| 38- 40 | 160 | 0 | 50 | 0 | 78 | 45 | 88 | 50 | 12 | 6 | 42 | 111 | ] 2 |
| 42- 44 | 180 | 0 | 54 | 0 | 85 | 49 | 96 | 54 | 14 | 6 | 46 | 119 | 12 |
| 46~48 | 195 | 0 | 58 | 0 | 92 | 53 | 104 | 59 | 14 | 8 | 50 | 127 | 12 |
| 50-52 | 210 | 100 | 64 | 24 | 100 | 57 | 112 | 65 | 14, | 10 | 54 | 137 | 12 |
| 54-56 | 225 | 115 | 68 | 32 | 106 | 61 | 120 | 71 | 14 | 12 | 58 | 145 | 12 |
| 58-60 | 240 | 130 | 72 | 40 | 114 | 65 | 128 | 75 | 14 | 14 | 62 | 153 | 12 |
| 62 ~64 | 255 | 145 | 78 | 50 | 122 | 69 | 136 | 79 | 14 | 16 | 66 | 168 | 15 |
| 66 -68 | 270 | 150 | 82 | 54 | 130 | 73 | 144 | 85 | 16 | 16 | 70 | 176 | 15 |
| 70 ~ 73 | 290 | 170 | 88 | 64 | 138 | 78 | 154 | 90 | 16 | 18 | 75 | 186 | 15 |
| 76 -78 | 310 | 190 | 94 | 74 | 148 | 83 | 164 | 95 | 16 | 20 | 80 | 196 | 15 |
| 81-84 | 330 | 210 | 100 | 84 | 158 | 88 | 174 | 100 | 16 | 22 | 85 | 206 | 15 |
| 87-90 | 350 | 230 | 106 | 94 | 170 | 93 | 184 | 107 | 18 | 24 | 90 | 220 | · 15 |
| 92 ~95 | 380 | 250 | 112 | 108 | 180 | 98 | 194 | 112 | 18 | 28 | 95 | 234 | 15 |
| 98~102 | 410 | 270 | 120 | 116 | 192 | 103 | 206 | 120 | 22 | 28 | 100 | 255 | 18 |
| 105 -111 | 440 | 300 | 130 | 130 | 208 | 113 | 224 | 131 | 24 | 30 | 110 | 273 | 18 |
| 114~120 | 470 | 330 | 140 | 152 | 224 | 123 | 242 | 140 | 24 | 36 | 120 | 295 | 18 |
| Check piece for pin |
Hexagon
head
bolt Hexagon nut |
Leg of weld |
Calculated mass (kg) |
|||||||
| L6 | L7 | b2 | b3 | t5 | d6 |
Nominal
size of screw thread d5 |
l7 | f1 | f2 | |
| 100 | 70 | 30 | 11 | 8 | 14 | M12 | 25 | 4 | 5.5 | 5.9 |
| 100 | 70 | 30 | 13 | 8 | 14 | M 12 | 25 | 4 | 6.5 | 8 |
| 100 | 70 | 30 | 15 | 8 | 14 | M 12 | 25 | 5 | 6.5 | 9.8 |
| 100 | 70 | 30 | 17 | 8 | 14 | M 12 | 25 | 6.5 | 6.5 | 11.l |
| 100 | 70 | 30 | 19 | 8 | 14 | M 12 | 25 | 8 | 6.5 | 14 |
| 100 | 70 | 30 | 21 | 8 | 14 | M 12 | 25 | 8 | 6.5 | 16 |
| 130 | 90 | 40 | ]8 | 10 | 18 | M 16 | 30 | 8 | 6.5 | 18.1 |
| 130 | 90 | 40 | 20 | 10 | 18 | M 16 | 30 | 9.5 | 7.5 | 23.l |
| 130 | 90 | 40 | 22 | 10 | 18 | M 16 | 30 | 9.5 | 7.5 | 26.5 |
| 130 | 90 | 40 | 25 | 10 | 18 | M 16 | 30 | 9.5 | 7.5 | 30.8 |
| 130 | 90 | 40 | 28 | 10 | 18 | M 16 | 30 | 9.5 | 7.5 | 35.3 |
| 130 | 90 | 40 | 30 | 10 | 18 | M 16 | 30 | 11 | 8.5 | 42.8 |
| 130 | 90 | 40 | 33 | 10 | 18 | M 16 | 30 | 11 | 8.5 | 50.7 |
| 180 | 130 | 50 | 31 | 12 | 22 | M 20 | 40 | 12.5 | 10.5 | 66.8 |
| 180 | 130 | 50 | 35 | 12 | 22 | M20 | 40 | 14 | 11.5 | 84 |
| 180 | 130 | 50 | 39 | 12 | 22 | M 20 | 40 | 14 | 11.5 | 10 2 |

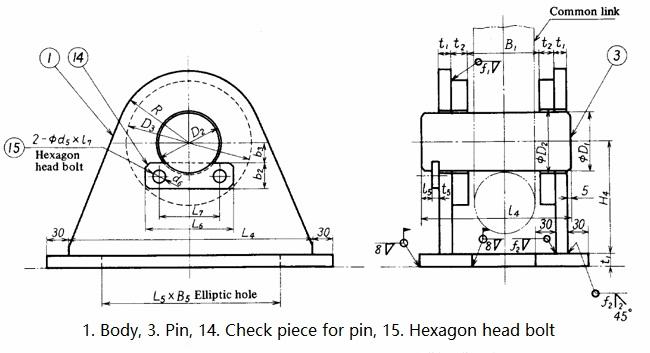

Drawing of JIS F 2025 B Fixed type ships anchor chain cable clenches
