| Price | As per quotation |
| MOQ | 1 |
| Delivery Time | As per offer |
| Brand | Zhongyuan |
| Place of Origin | China |
| Certification | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Model Number | Standard and Customized |
| Packaging Details | Pallet or Customized |
| Payment Terms | TT, L/C, Etc. |
| Supply Ability | Satisfy clients needs |
| Classification Certificates | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc | Place of Origin | China |
| Packaging Details | Pallet or Customized | Standard | JIS F 3020-1985 |
| Material | Mild Steel, Stainless Steel | Model Number | Standard and Customized |
| Supply Ability | Satisfy clients needs | Certification | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
| Weight | 1.3-16.4kg | Surface treatment | sandblasting to S2.5 + one layer of epoxy shop primer |
| Brand Name | Zhongyuan | Payment Terms | TT, L/C, Etc. |
| Type | Type A | Price | As per quotation |
| Delivery Time | As per offer | Nominal Size | DN 50-150mm |
| Minimum Order Quantity | 1 |

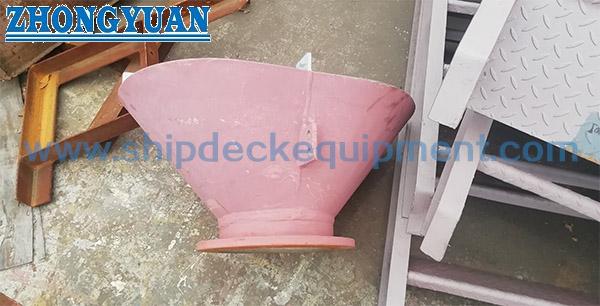

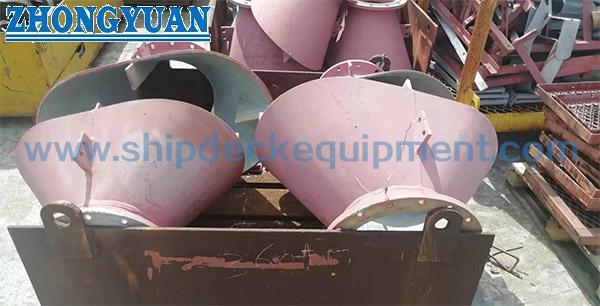

JIS F 3020-1985 Type A Round Type Suction Bell Mouth
Description:
Suction Bellmouth is usually used in oil tank, water tank and sewage well of all kinds of ships, which is suitable for water or oil medium.
Main Technical Specification:
1. Standard: JIS F 3020-1985
2. Type: Type A
3. Nominal Size: DN 50-150mm
4. Weight: 1.3-16.4kg
5. Material: Mild Steel, Stainless Steel;
6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer;
7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
Main Technical Parameter:
| Nominal size | Structure dimensions | reference | ||||||
| D1 | D2 | H1 | C | t | Weight kg | |||
| 50 | 60.5 | 63 | 110 | 28 | 13 | 4.5 | 2.28 | 1.3 |
| 65 | 76.3 | 79 | 160 | 48 | 15 | 4.5 | 2.27 | 2.0 |
| 80 | 89.1 | 92 | 220 | 76 | 15 | 6 | 2.06 | 3.9 |
| 90 | 101.6 | 103 | 255 | 91 | 17 | 6 | 2.1 | 5.0 |
| 100 | 114.3 | 117 | 275 | 94 | 20 | 6 | 2.2 | 5.5 |
| 125 | 139.8 | 142 | 400 | 154 | 20 | 6 | 2.04 | 10.4 |
| 150 | 165.2 | 168 | 450 | 158 | 25 | 8 | 2.0 |
16.4 |

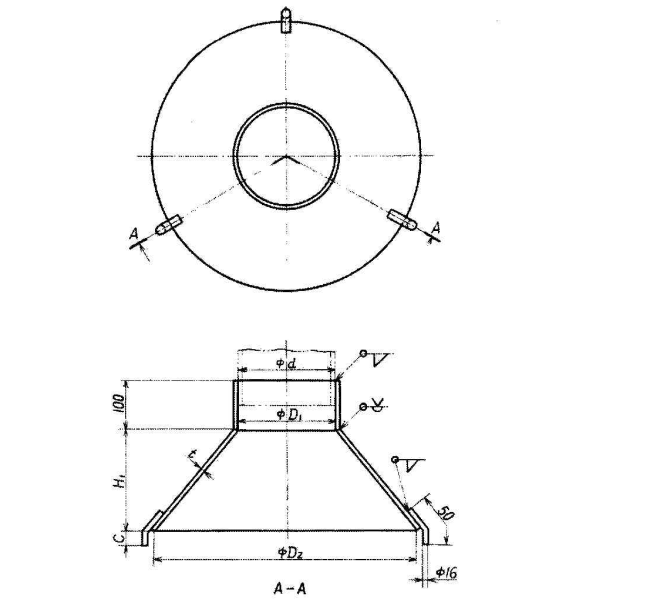

Drawing of JIS F 3020-1985 Type A Round Type Suction Bell Mouth
