| Price | to be quoted case by case |
| MOQ | 1 |
| Delivery Time | As per offer |
| Brand | Zhongyuan |
| Place of Origin | China |
| Certification | ISO9001 |
| Model Number | M22, M30, M36, M45, etc. |
| Packaging Details | Pallet or wood box |
| Payment Terms | TT, L/C, Etc. |
| Supply Ability | 10000pc/month |
| Place of Origin | China | Packaging Details | Pallet or wood box |
| Durability | High, Multi open and closing | Modle | M22, M30, M36, M45, |
| Material | C-Mn Steel, Alloy Steel, Forging | Standard | TTS, MacGregor Conformity |
| Maintenance | Changeable spare parts | Model Number | M22, M30, M36, M45, etc. |
| Supply Ability | 10000pc/month | Certification | ISO9001 |
| Weight | Light weight, Heavy Weight as applicable | Surface | Painted, Normal Galvanized, Hot Dip Galvanized |
| Brand Name | Zhongyuan | Payment Terms | TT, L/C, Etc. |
| Price | to be quoted case by case | Delivery Time | As per offer |
| Length | 330mm to 1000mm | Minimum Order Quantity | 1 |
| Safety | Compliant with Safety Standards |

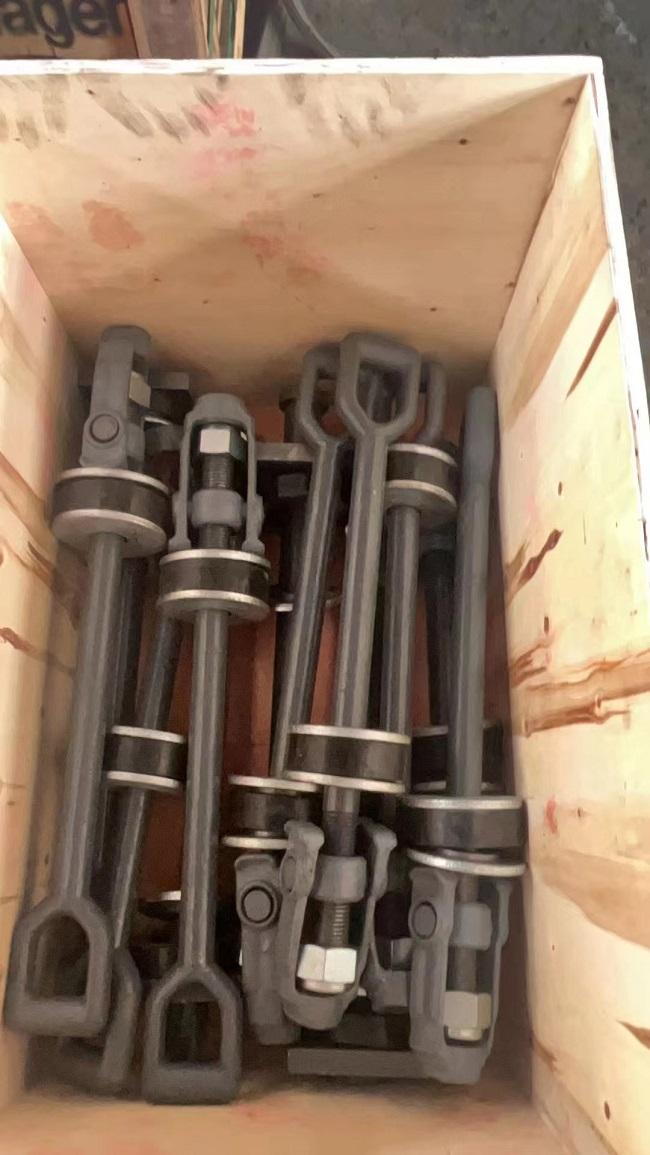

M30 Snap Lock Quick Action Cleats for Ship Hatch Cover
Product Description
Snap lock quick action cleats is designed for tighten closely main ship hatch cover. Quick Acting Cleats is one of main important component to keep hatch cover weathertight at sea. We have light and heavy load snap lock which are for different size and weight of main hatch cover. There are different kinds of snap lock and cleats to install on side or top of hatch cover. Our hatch cover cleats, quick acting cleats, marine cleats conform to Mac Gregor / TTS / CG/ other standard.
Product Features:
Main Technical Specification:
Main Technical Parameters:
| Type | M22 snap lock | M30 snap lock | M36 snap lock | M45 snap lock |
| Rod diam | Ф24mm | Ф32mm | Ф36mm | Ф45mm |
| Length (mm) | 330/450/600 | 600/800/1000 | 600/800/1000 | 450/650/750 |
| Cam size | smaller | medium | Medium | bigger |
| Steel washer | Ф75mm | Ф110mm | Ф110mm | Ф140mm |
| Rubber washer | Ф70mm | Ф100mm | Ф100mm | Ф130mm |
| Nylon nut | M22 | M30 | M36 | M45 |
| Rod material | Die-forging 20Cr | Die-forging 20Cr | Die-forging 20Cr | Die-forging 20Cr |
| Treatment | H.D.G or paint | H.D.G or paint | H.D.G or paint | H.D.G or paint |
