| Price | Negotiatable |
| MOQ | 1 Set |
| Delivery Time | 30 days |
| Brand | HeJin |
| Place of Origin | China |
| Certification | calibration certificate (cost additional) |
| Model Number | HH0801 |
| Packaging Details | Plywood |
| Supply Ability | 10 set per month |
| Usage | Water Ingress Protection Test,rain simulation testing,dripping test equipment,Rain Test Equipment | Place of Origin | China |
| Warranty | 1 Year | Packaging Details | Plywood |
| Standard | IEC60529 | Model Number | HH0801 |
| Supply Ability | 10 set per month | Certification | calibration certificate (cost additional) |
| Brand Name | HeJin | Delivery Time | 30 days |
| Price | Negotiatable | Product name | IPX1- 2 water dripping test equipment drip test device,Drip Box Test Equipment |
| Minimum Order Quantity | 1 Set | Testing time | 0-999.9min |
| Needle hole | Φ0.4mm |
IEC 60529 IP Test Equipment Vertically Falling Water Drops For IPX1 IPX2
Standard:

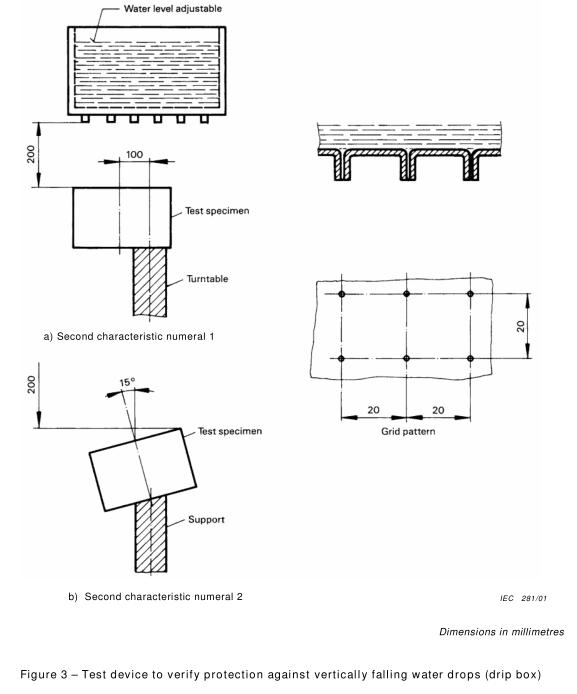

IEC 60529 Degrees of protection provided by enclosures (IP Code) clause 14.2.1 Test for second characteristic numeral 1 with the drip box and clause 14.2.2 Test for second characteristic numeral 2 with the drip box and figure 3. IEC 60598-1 clause 9.2.3.
Test sample:
Electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.). IP Test Equipment
Feature:
The frame is fixed on the wall to ensure the stable operation of the drip box; the screw lifting device has low resistance and controls the drip box to rise and fall smoothly; equipped with an infrared sensor, the dripping distance is accurate, and meets the standard requirements.
Parameters:
| Item | Parameter |
| Input power | Single-phase AC220V,50Hz |
| Water supply | Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |
| Control and operation | PLC intelligent control, 7 inch color touch screen operation |
| Testing time | 0-999.9min |
| Water tank size | Outline dimension: WDH=1100×800×350mm, fully enclosed water tank, SUS304 material |
| Drip test area | 1000×600mm, customizable |
| Drip height | 200mm, adjustable |
| Dripping rate (Water flow) |
1+0.05 0mm/min or 3+0.05 0mm/min switchable, adopt digital controlled rainfall technology |
| Needle hole | Φ0.4mm |
| Distance between holes | 20mm |
| Rotary table | Diameter: Φ600mm Rotating speed1r/min. Can be paused 150s at four aspects, Load bearing≤150kg electrical equipment |
| Supporting sample | 15°bevel |
| Water tank lifting drive | Motor drive, screw guide rail to ensure the stable lifting and self-locking |
| Installation method | Wall mounted or floor type |
| Site requirements |
Dedicated IP waterproof test room, The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation |
| Area covered | The size can be set according to customer’s requirement |
