| Price | Negotiable |
| MOQ | 1 Set |
| Delivery Time | 35days |
| Brand | ZK |
| Place of Origin | China |
| Certification | CE ISO Certification |
| Model Number | PPC Series Bag Filter |
| Packaging Details | Export standard container or as customers' requirements |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 35 Set / Sets per Month |
| Filtration area | 900-4000 （㎡) | Place of Origin | China |
| Warranty | 12 Months | Net filtration area | 4205 （㎡) |
| Packaging Details | Export standard container or as customers' requirements | Product Name | Industrial Baghouse Dust Collectors |
| Shipping Port | Shanghai, Qingdao, Tianjin | Model Number | PPC Series Bag Filter |
| Supply Ability | 35 Set / Sets per Month | Certification | CE ISO Certification |
| Equipment Condition | New | Brand Name | ZK |
| Payment Terms | L/C, D/A, D/P, T/T | Spare parts | we supply |
| Price | Negotiable | Delivery Time | 35days |
| Minimum Order Quantity | 1 Set | Model | PPC32-3, PPC64-8 |
| Business Scope | design, manufacturer, onsite guidance | Cleaning mode | on-line ash cleaning |

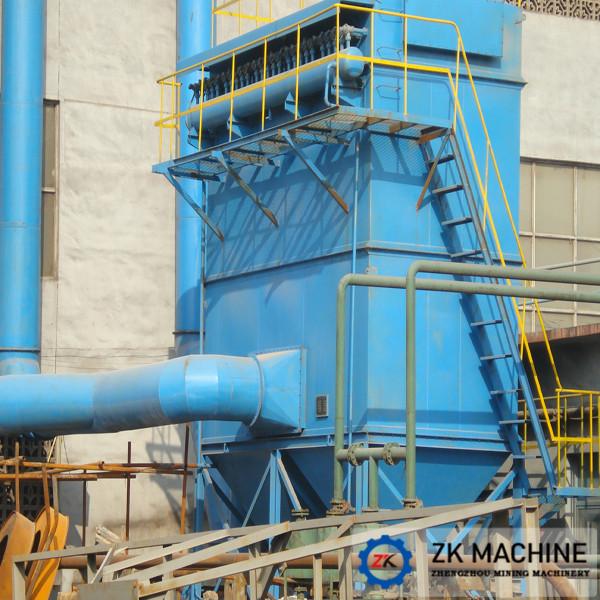

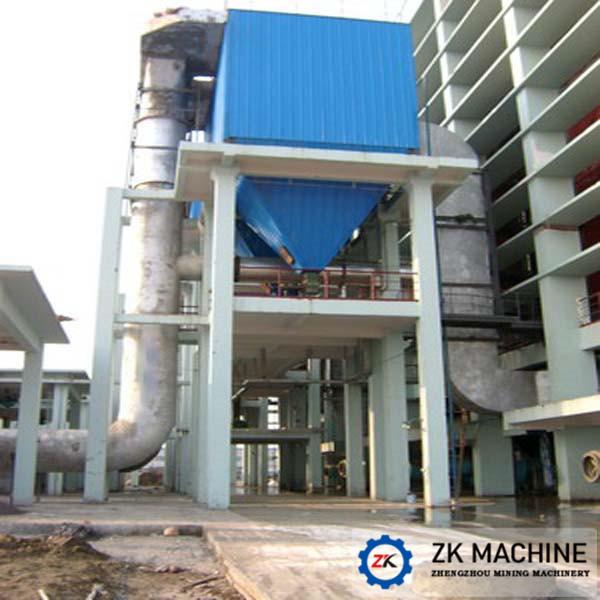

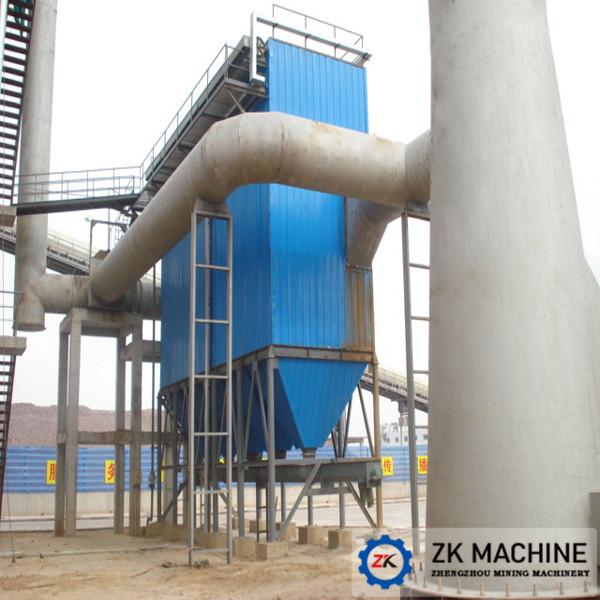

Baghouse Pulse Jet Dust Collector / Bag Filter / Baghouse/ Dust Remove System
Pulse Jet Dust Collector Introduction:
Baghouse dust collectors stand out due to their ability to handle high volumes of dust laden air using a compressed-air self-cleaning system enabling effective reverse blasting through deformation of the filter bags.
The unit filters sub-micron sized particles in continuous operating mode and with a steady loss of differential pressure.
Our line of baghouse dust collectors includes sealed mechanisms as well as doors that provide easy access with very few tools required for maintenance.
We
manufacture
several
styles
of
pulse
jet
baghouses
to
fit
different
applications
and
customer
preferences.
In
most
cases,
we
recommend
our
top
entry
baghouse
lines.
These
models
allow
for
quick
and
easy
access
to
the
snap
band
filter
bags,
and
allow
for
easy
removal
of
individual
bags
without
having
to
remove
others.
Our
top
entry
models
come
with
the
option
for
top
hatch
access
or
an
enclosed
walk-in
plenum.
We
also
offer
bottom
access
units
(also
called
bottom/side
loading)
for
use
in
applications
with
limited
overhead
clearance.
Finally,
both
our
top
and
bottom
load
units
are
available
in
bin
vent
versions
for
use
on
silos,
mixers,
etc.
Pulse Jet Dust Collector Advantages:
1. High filtration capacity. Models from 16 to 720 filter bags and up to 125 000 CFM capacity..
2. Custom engineering. The systems in the Bagsonix series can be customized based on specific requirements.
3. Bigger volume air bag can be suitable for both high pressure and low pressure air supply.
4. Project integration. Avoids particle accumulation within plants, in order to better comply with NFPA regulations.
5. Standard filter bags. Not limited to obtaining replacement cages and bags from a sole source provider.
According to different Bag Quantity, Plenum Pulse Dust collector could be classified as 32bags/room, 64bags/room,96bags/room,128bags/room. Each kind will be divided into many different type-33 kinds in total.
Baghouse Dust Collector Parameter:
| Model | PPC128-6 | PPC128-9 | PPC128-10 | PPC128-2×6 | PPC128-2×7 | PPC128-2×8 | |
| Volume(m³/h) | 67300 | 100900 | 112100 | 134600 | 157000 | 179400 | |
| Air speed(m/min) | 1.2-2.0(Speed varies at different dust points) | ||||||
| Filtration area(㎡) | 935 | 1402 | 1558 | 1869 | 2181 | 2492 | |
| Net filtration area(㎡) | 779 | 1246 | 1402 | 1713 | 2025 | 2336 | |
| No. of bag(pc) | 768 | 1152 | 1280 | 1536 | 1792 | 2084 | |
| Resistance(Pa) | 1470-1770 | ||||||
| Minus pressure(Pa) | 7000 | ||||||
| Dust content at inlet(g/m³) | ＜1300 | ||||||
| Dust emission(g/m³) | ≤0.1 | ||||||
| Compressed air | Pressure(Pa) | (5-7)×105 | |||||
| Air consumption | 3.6 | 5.4 | 6 | 7 | 8.3 | 9.5 | |
| (m³/min) | |||||||
| Pulse valve | Qty(pc) | 12 | 18 | 20 | 24 | 28 | 32 |
| Size | 2-1/2″ | ||||||
| Elevation valve | Qty(pc) | 6 | 9 | 10 | 12 | 14 | 16 |
| Size(mm) | Valve Φ725,air tank Φ100 | ||||||
| Discharge device YJD-26 | Outlet 300×300mm Capacity 24m³/h | Double flap valve 305×915 | |||||
| Screw conveyor | Model | Dia. Φ300,capacity 21m³/h | N/A | ||||
| Gearbox | XWD2.2-5-1/43,power 2.2Kw | N/A | |||||
| Air slide | Air slide 250mm,flow rate 2.0m³/㎡, Pressure 6860pa,If the dust content exceeds 700g/m³ at inlet, bag filter with big screw conveyor should be considered. | ||||||
| Bag size and material | Dia.×lengthΦ130×3050,Gross weight of polyethylene felt 450g/㎡,temperature 120℃ | ||||||
| Insulation area(㎡) | 125 | 196 | 205 | 223 | 247 | 262 | |
| Total weight(approx.)(Kg) | 24120 | 31680 | 34680 | 43920 | 52680 | 60000 | |
| Note 1: Net filtration area means the area of one chamber during dust removing. | |||||||
| 2: The compressed air consumption is based on supply of compressed air pipe from an air compression station. The consumption should be considered to be 1.3 times more if the supply is provided by an independent air compressor. | |||||||
