| Price | Negotiable |
| MOQ | Negotiable |
| Delivery Time | 22 days |
| Brand | HYZZ |
| Place of Origin | Changsha, China |
| Certification | ISO9001, CE, CB, UN38.3 |
| Packaging Details | foam, wooden box / foam, carton, tray |
| Payment Terms | L/C, T/T |
| Supply Ability | 10,000 PCS per month |
| Working current | 150A | Place of Origin | Changsha, China |
| Applications | AGV vehicles, lawn mowers, sightseeing vehicles, sweepers, golf carts,etc. | Packaging Details | foam, wooden box / foam, carton, tray |
| L x W x H | 510mmX375mmx220mm | Working temperature | -20°C ~ 60°C |
| Supply Ability | 10,000 PCS per month | Certification | ISO9001, CE, CB, UN38.3 |
| Name | High Power Lithium Ion Battery | Brand Name | HYZZ |
| Payment Terms | L/C, T/T | Delivery Time | 22 days |
| Model | 48V/200AH |
48V Rechargeable High Power Li Ion Battery Charger For Electric Vehicle
Model: 48V/200AH
Specification L x W x H: 510mmX375mmx220mm
Parameters: working temperature -20°C ~ 60°C, lithium iron phosphate battery, Anderson connector, RS485 communication, continuous working current 100A, instantaneous maximum current 150A, charging upper limit 54V, discharge lower limit 36V, cold rolled plate shell, spray plastic
Applications: AGV vehicles, lawn mowers, sightseeing vehicles, sweepers, golf carts, sweepers, ships, power
environmentally
friendly
backup
power
system
focus
on
short-time
and
high-rate
discharge
scenarios.The
environmentally
friendly
lithium
ion
battery
configured
with
high-performance
BMS,
has
a
wide
range
of
performance
and
application
advantages
compared
with
conventional
battery.
Advantages
1. It is high integrated with less installation space.
2. Long life cycle, >3000 times at 80% DOD.
3. It without heavy metals and environment friendly.
4. Maintenance free,there is no memory effect.
5. Internal BMS with full protection,battery has high voltage protection with higher reliability.
Safety
Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
|
|
Number | HY.NO0002 | ||
| Version | A0 | |||
|
HYLF/48/200-001 Battery pack specification |
Date |
2019-5-8 |
||
| 1．Basic characteristics |
Product picture
|
|||
|
Product name |
Lithium battery pack |
|||
|
product code |
HYLF/48/200-001 | |||
| L x W x H | 510mmX375mmx220mm | |||
| Rated voltage | 48V | |||
| Rated Capacity | 200AH | |||
| Serialization | 2P15SAluminum shell | |||
|
Internal resistance |
≤120mΩ | |||
| Discharge cutoff voltage | 36V |
Shell color
☑ Matt black □ Bright gray □ Fruit green + bright gray (two colors) □ Stainless steel
Charging and discharging interface □ Wall terminal ☑ Anderson □ Air plug □ Positive and negative lines
Batteries:3.2v/100Ah
|
||
| Charging protection voltage | 54V | |||
|
Max.charging voltage |
54.75V |
|||
|
Max. charging current |
40A 0.2C |
|||
|
Max. sustained discharge current |
100A |
|||
|
Peak current |
150±3A 2S | |||
|
Rated discharge current |
100A | |||
| Charging method | CC/CV |

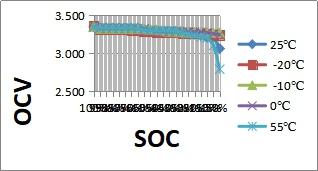

Cell discharge curve
|
||
|
weight |
75.0Kg | |||
|
Operating temperature
|
Charging |
0～45℃ | ||
|
Discharge |
-20～45℃ | |||
|
60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months |
-10～35℃ |
|||
|
C1 Cycle life |
1500 Times |
|||
| price | RMB:¥ 00.00 |

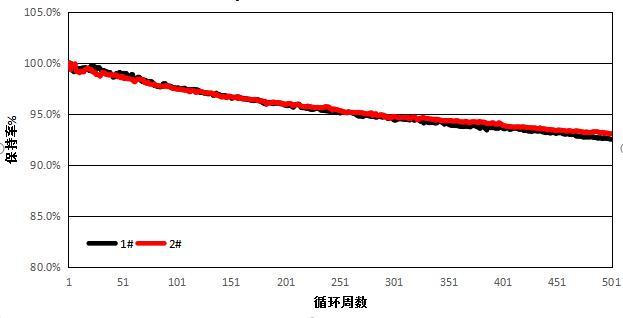

Cycle graph |
||
|
Delivery period |
25 Working day |
|
||
