| Price | Contact us |
| MOQ | Bronze Precision Wear Plates & Lubricating Parts made to order |
| Delivery Time | Shipped in 3-20 work days |
| Brand | viiplus.com |
| Place of Origin | china |
| Certification | ISO9001 /TS16949 |
| Model Number | cast bronze bushing |
| Packaging Details | Standard package, Pallet or container, As per customized specifications |
| Payment Terms | TT IN ADVANCE,L/C,Western Union |
| Supply Ability | bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing |
| Types | cast bronze bushing | Place of Origin | china |
| Gleitalger | A plain bearing, or more commonly sliding contact bearing and slide bearing, is the simplest type of bearing, comprising just a bearing surface and no rolling elements. Therefore, the journal slides over the bearing surface. The simplest example of a plain | Categories | Plain bearings |
| High Light: | Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing | Bush Bearings Manufacturers Suppliers Exporters | plain bearings. Long, maintenance-free service, manufactures bushings in various designs and from different materials. tiffany@viiplus.com, Bushings - Configure and purchase - https://www.viiplus.com/ |
| Packaging Details | Standard package, Pallet or container, As per customized specifications | Model Number | cast bronze bushing |
| Supply Ability | bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing | Meterial | CuZn25AI5Mn4Fe3, CuSn5Pb5Zn5 , CuAl10Ni5Fe5, CuSn12 |
| Application: | impact load and dusty environment | Certification | ISO9001 /TS16949 |
| Brand Name | viiplus.com | Payment Terms | TT IN ADVANCE,L/C,Western Union |
| Get A Better Quote | tiffany@viiplus.com | Price | Contact us |
| Delivery Time | Shipped in 3-20 work days | Parts | Bushings thrust washers strips |
| Self-lubricating Bearing Bushing Manufacturer | https://www.viiplus.com/ | Minimum Order Quantity | Bronze Precision Wear Plates & Lubricating Parts made to order |

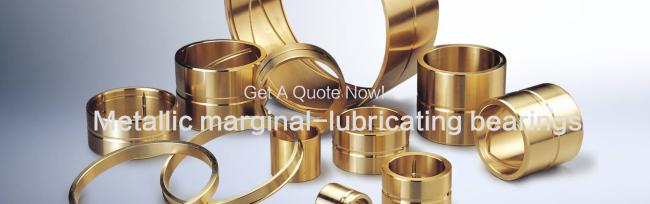

Metallic Marginal Lubricated Bronze Sleeve Bearings CuSn5Pb5Zn5 are precision-engineered components designed to provide smooth and reliable operation in a wide range of industrial applications. These bearings are made of CuSn5Pb5Zn5 alloy, a bronze material that exhibits exceptional mechanical properties, corrosion resistance, and wear resistance.
The marginal lubricating design of these bearings ensures that they operate smoothly even in conditions where external lubrication may be limited or impractical. The CuSn5Pb5Zn5 alloy incorporates lubricating properties that provide a low-friction surface, reducing wear and extending the bearings' lifespan.
The sleeve bearings are ideal for use in machinery, automotive components, and other industrial equipment where high loads and temperatures are encountered. Their robust construction and precision manufacturing ensure reliable performance even under the most demanding operating conditions.
Wh it's in rotating equipment, transmission systems, or any other application where smooth and efficient motion is crucial, Metallic Marginal Lubricated Bronze Sleeve Bearings CuSn5Pb5Zn5 offer a robust and long-lasting solution. Their self-lubricating properties eliminate the need for regular lubrication, reducing maintenance requirements and operational costs.
In summary, these bearings are a reliable choice for industrial applications that require high performance and durability, especially in environments where lubrication may be challenging.
The cast bronze alloy is a high strength material with good impact resistance, corrosion resistance and wear resistance features under the middle to high load working conditions. High precision machining provides good tolerance matching with the counterparts. Oil grooves, oil deposits could be designed according to the different application conditions. Dimensions of the bearings could be customized for a better match to the customers' existing counterparts.
The cast bronze alloy tuned bearing provides a perfect self-lubricating solution both from technical and economic aspects. The material has a high load performance and good corrosion resistance feature. Various alloys are available depending on different application requirements.
cast bronze alloy bushing do not begin as a powder, so they are able to maintain a finer grain structure and therefore a higher degree of strength. In general, cast bronze alloy bushing are also stronger, more durable, and more reliable under compressive force. This combination of properties makes cast bushings an ideal choice for applications involving heavier loads. A sintered bronze bushing of comparable size would simply be unable to withstand the same forces as a cast one.
| Type | 600 | 600S5 | 600W1 | 600W3 | 600S1 | 600S2 | 600S3 | |
| Material | CuZn25AI5Mn4Fe3 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | ||||
| Density | 7.8 | 8.9 | 7.8 | 8.9 | ||||
| HB Hardness | ≥210 | ≥250 | ≥210 | ≥230 | ≥70 | ≥150 | ≥75 | |
| Tensile Strength MPa | ≥750 | ≥800 | ≥755 | ≥755 | ≥250 | ≥500 | ≥270 | |
| Yield Strength MPa | ≥450 | ≥450 | ≥400 | ≥400 | ≥90 | ≥260 | ≥150 | |
| Elongation % | ≥12 | ≥8 | ≥12 | ≥12 | ≥13 | ≥10 | ≥5 | |
| Thermal Expansion Coefficient | 1.9x10*%/°C | 1.8x10*9/°C | 1.6x10^*/°C | 1.8x10*/°C | ||||
| Max. Operation Temp. | -40~+250°C | -40~+400°C | ||||||
| Max. load MPa | 50 | 75 | 75 | 100 | 50 | |||
| Max. speed m/s | Dry | 0.5 | 0.1 | 0.5 | 0.1 | 0.5 | ||
| Lubricated | 1 | 0.25 | 1 | 0.25 | 2.5 | |||
| Max. PV (N/mm2*m/s) | Dry | 1.65 | 1 | |||||
| Lubricated | 3.25 | 1.65 | ||||||
As
friction-reducing
components,
it
is
essential
that
bushings
are
constructed
from
wear-resistant
materials
that
provide
good
sliding
properties.
While
bushings
can
be
fabricated
from
a
variety
of
plastics
and
metals,
bronze
provides
several
distinct
advantages
over
alternative
options
in
heavy-load
applications.
As
an
inherently
moldable
and
easy-to-machine
material,
bronze
is
well-suited
for
achieving
a
range
of
bushing
designs.
The
bronze
alloy
used
in
cast
bronze
alloy
bushing
undergoes
a
continuous
or
centrifugal
casting
process,
giving
the
metal
a
finer
grain
structure
and
improved
mechanical
properties.
The
bronze
alloy
cast
bar
is
then
cut
and
processed
into
the
finished
bushing
using
a
computer
numerical
control
(CNC)
lathe
or
other
precision
machining
method.
Cast
bronze
bushings
exhibit
excellent
structural
strength,
durability,
and
resistance
to
compressive
forces,
making
them
well-suited
for
harsh,
high-wear
applications.
They
can
also
withstand
high
temperatures
without
losing
their
strength.
The typical applications of this material include the port machinery,construction engineering machinery, plastic injection machinery, axles and material handling machinery. It has a high load capacity and good corrosion resistance feature.
