Thin-walled split oil groove bronze bushings, also known as brass bearings or oil sockets, are designed specifically for use in construction machinery. These bushings are manufactured from high-quality bronze material, which offers excellent wear resistance and durability, ensuring long-lasting performance even under heavy loads and high-speed operations.
The split design of these bushings allows for easy installation and replacement, greatly reducing downtime and maintenance costs. The oil groove within the bushing effectively lubricates the moving parts, reducing friction and heat generation, thereby enhancing the efficiency and reliability of the machinery.
These bronze bushings are widely used in various construction machinery components, such as gears, shafts, and bearings, where precision and durability are crucial. Their excellent performance in withstanding extreme temperatures and pressures makes them ideal for use in harsh environments.
Overall, thin-walled split oil groove bronze bushings are an essential component for ensuring the smooth and efficient operation of construction machinery.


Bronze Sleeve Bushings, bronze bushing extension housing for gearbox, shaft bushing.


Flange Type Slide Bush Made in China
Viiplus is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and the best level of services, our products have been exported to dozens of countries and regions from Europe, the United States, and Southeast Asia, etc.

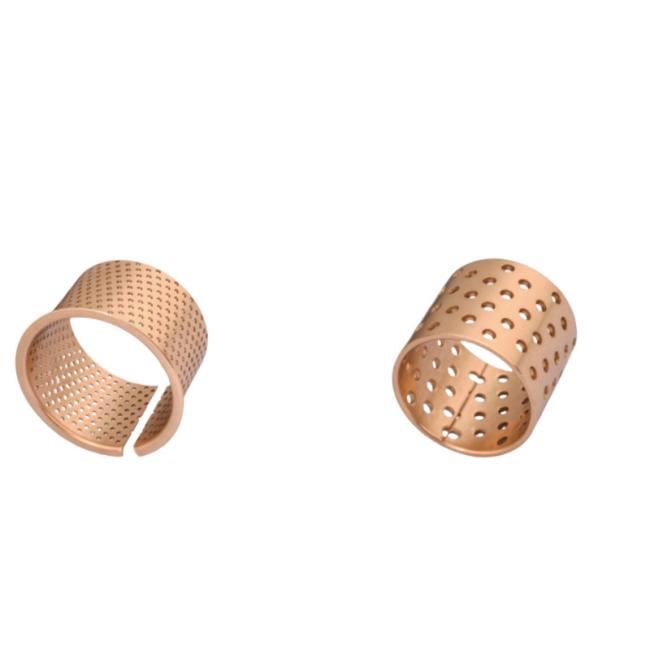

Wrapped oilless bushing inside with oil pockets. Thin Wall Split Groove Bronze Bushings made-to-order from china for Construction machinery.

Plain bearings are characterized by precise tolerances, simple construction, and self-lubricating quality materials. Our bushings, flanges, cylinders, thrust washers, wear plates, slide bushings, oil, precision, and plain bearings provide high performance, consistent and reliable.https://www.bronzelube.com

We supply and manufacture in china stock: Phosphorbronze (Cooper-Tin) CuSn8P Bronze Sleeve Bearing forms made to order: cylindrical bushes, flanged bushes, thrust washers, sliding plates, spherical plain bearings, special shapes, customized bearing designs.

CUSN8/CUSN6 BRONZE Series bushings biggest feature is the thin-walled structure, does not occupy a large installation space. Sleeve material specially formulated high-density copper alloy strip. Compared with the traditional casting of copper, with high density, no gas shrinkage, carrying capacity, but also wear resistance, fatigue and other advantages. Bushings manufactured using advanced tooling, can be processed into a variety of engineering conditions apply oil hole, oil pit, sump friction surface strip, so that the sleeve can store a lot of grease in use, to extend the refueling interval, effective increased service life.

Bushings costom size VIIPLUS CHINA bronze bushing bushings and flange grooves exhibit wear properties up to four times greater than OEM bushings due to the use of improved materials. This higher level of quality is required for bronze bushings to match part shafts, both in performance and longevity of parts. Greater lubrication is also present on bronze bushings to ensure you get a solution specifically tailored to your needs. Wh you want a straight bushing, or a grease-modified flanged bushing, the tools available from VIIPLUS will ensure what you need.Bronze wrapped bushing with oil groove. It has good anti-fatigue, anti-erosion and anti-abrasion and loading ability. It can be produced by different bronze materials and the surface can be produced with another type of socket and oil groove under different working conditions.

Thin Wall bearings are distinguished from rolling-element bearings primarily by the fact that they consist of only one part. However, that singular part may be built from different materials, and in different shape sleeve bearing,flange bearing,thrust washer.






Inner Packing
For small products: 100pcs-200pcs per sealed plastic bag.
For larger products: 2pcs-10pcs per roll of plastic film (depends on product size)
Cylindrical bushing Szie Measurements in mm

CUSN8 BRONZE BUSHING 1215 12/14x15 CUSN8 BRONZE BUSHING 1415 14/16x15 CUSN8 BRONZE BUSHING 1420 14/16x20 CUSN8 BRONZE BUSHING 1515 15/17x15 CUSN8 BRONZE BUSHING 1525 15/17x25 CUSN8 BRONZE BUSHING 1615 16/18x15 CUSN8 BRONZE BUSHING 1620 16/18x20 CUSN8 BRONZE BUSHING 1625 16/18x25 CUSN8 BRONZE BUSHING 1815 18/20x15 CUSN8 BRONZE BUSHING 1820 18/20x20 CUSN8 BRONZE BUSHING 1825 18/20x25 CUSN8 BRONZE BUSHING 2015 20/23x15 CUSN8 BRONZE BUSHING 2020 20/23x20 CUSN8 BRONZE BUSHING 2025 20/23x25 CUSN8 BRONZE BUSHING 2030 20/23x30 CUSN8 BRONZE BUSHING 2215 22/25x15 CUSN8 BRONZE BUSHING 2220 22/25x20 CUSN8 BRONZE BUSHING 2225 22/25x25 CUSN8 BRONZE BUSHING 2230 22/25x30 CUSN8 BRONZE BUSHING 2515 25/28x15 CUSN8 BRONZE BUSHING 2525 25/28x25 CUSN8 BRONZE BUSHING 2530 25/28x30 CUSN8 BRONZE BUSHING 2815 28/32x15 CUSN8 BRONZE BUSHING 2830 28/32x30 CUSN8 BRONZE BUSHING 3020 30/34x20 CUSN8 BRONZE BUSHING 3030 30/34x30 CUSN8 BRONZE BUSHING 3040 30/34x40 CUSN8 BRONZE BUSHING 3220 32/36x20 CUSN8 BRONZE BUSHING 3230 32/36x30 CUSN8 BRONZE BUSHING 3240 32/36x40 CUSN8 BRONZE BUSHING 3520 35/39x20 CUSN8 BRONZE BUSHING 3530 35/39x30 CUSN8 BRONZE BUSHING 3540 35/39x40 CUSN8 BRONZE BUSHING 4020 40/44x20 CUSN8 BRONZE BUSHING 4030 40/44x30 CUSN8 BRONZE BUSHING 4040 40/44x40 CUSN8 BRONZE BUSHING 4050 40/44x50 CUSN8 BRONZE BUSHING 4530 45/50x30 CUSN8 BRONZE BUSHING 4540 45/50x40 CUSN8 BRONZE BUSHING 4550 45/50x50 CUSN8 BRONZE BUSHING 5030 50/55x30 CUSN8 BRONZE BUSHING 5040 50/55x40 CUSN8 BRONZE BUSHING 5050 50/55x50 CUSN8 BRONZE BUSHING 5060 50/55x60 CUSN8 BRONZE BUSHING 5540 55/60x40 CUSN8 BRONZE BUSHING 5560 55/60x60 CUSN8 BRONZE BUSHING 6030 60/65x30 CUSN8 BRONZE BUSHING 6040 60/65x40 CUSN8 BRONZE BUSHING 6060 60/65x60 CUSN8 BRONZE BUSHING 6540 65/70x40 CUSN8 BRONZE BUSHING 6560 65/70x60 CUSN8 BRONZE BUSHING 7040 70/75x40 CUSN8 BRONZE BUSHING 7080 70/75x80 CUSN8 BRONZE BUSHING 7540 75/80x40 CUSN8 BRONZE BUSHING 7580 75/80x80 CUSN8 BRONZE BUSHING 8040 80/85x40 CUSN8 BRONZE BUSHING 8080 80/85x80 CUSN8 BRONZE BUSHING 8540 85/90x40 CUSN8 BRONZE BUSHING 8580 85/90x80 CUSN8 BRONZE BUSHING 9040 90/95x40 CUSN8 BRONZE BUSHING 9090 90/95x90 CUSN8 BRONZE BUSHING 10050 100/105x50 CUSN8 BRONZE BUSHING 10095 100/105x95

VIIPLUS is professional sliding bearings manufacturer, china sourcing online .Plain bearings, bronze bushings, turned bronze parts.
Steel backed(Copper backed) +bronze powder+ (Pb free)
Steel backed + bronze powder + POM
Steel backed + Copper alloy (SAE 792 etc)
CuSn8 Bronze wrapped bearings (Diamond pockets, oil holes)
C863 (CuZn25Al5) turned bearings
Pluged bronze bearings (basic bronze C86300,C95400 etc)
Sintered parts......
