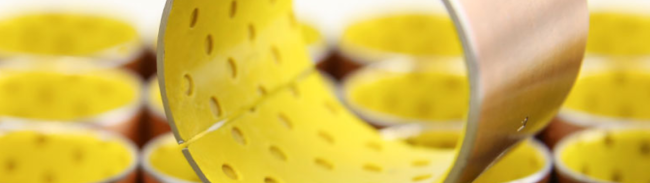

Sliding bushings, specifically those constructed with polymer plain sleeve bearing strips and metal-polymer composites, offer a unique combination of durability and maintenance-free operation. These bearings are designed to provide smooth, friction-free movement in various industrial applications, reducing wear and tear on machinery while enhancing overall performance.
The polymer material used in these bushings is known for its excellent wear resistance and low-friction properties. This allows the bearings to operate with minimal heat generation and reduced wear, even under high loads and speeds. The metal-polymer composite construction further enhances the durability and stability of the bushings, ensuring reliable performance over extended periods.
The maintenance-free design of these bearings significantly reduces operational costs and downtime. Unlike traditional bearings that require regular lubrication and maintenance, these polymer sleeve bearings require minimal upkeep, allowing for increased efficiency and productivity.
Wh you're upgrading existing equipment or installing new machinery, sliding bushings with polymer plain sleeve bearing strips and metal-polymer composites are an excellent choice for improving operational efficiency and reducing maintenance requirements. Contact us today to learn more about these innovative bearings and how they can enhance your industrial operations.

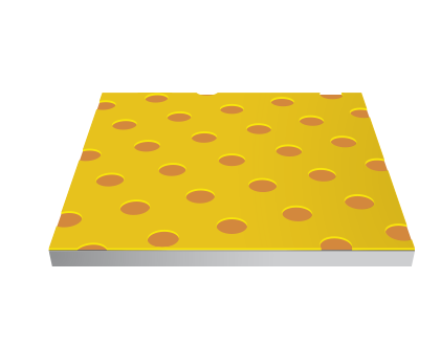

Sliding Bushings Ploymer Plain Sleeve Bearing


Non-lead boundary lubrication bearing is improved on the basis of LIKE POM BUSHINGS.It can be applied to the field where non-lead is required.Now it's widely used in textile machines,auto operating parts and other middle speed,middle load and grease lubrication occasions.

The structure of this self-lubricated bearing material strip plate sheet consists of spherical powdered bronze sintered onto a steel backing and POM polyacetal resin impregnated into the surface.This bushing is filled with lubricant before installation, to which a small amount of lubricant is added at predetermined intervals to allow it to withstand long-term operation.


All dimensions in mm 8.7 POM Strip - Inch sizes POM Strip Inch sizes are available as Non-Standard products on request. ss Wu min L W Part No. Length L Total Width W Usable Width WU min Thickness sS max. min. S11090POM 503 500 102 90 1.12 1.08 S15190POM 200 190 1.56 1.52 S20190POM 2.05 2.01 S25190POM 2.57 2.53 For stock availability please contact your local sales representative

VSB-20 Strips, Slide Bearing Strip


Plain Bearings & Sliding Bearing Strips

Our VIIPLUS range of bearing strip is suitable for rotary and oscillating movement applications.
The VIIPLUS bearing strip is made from carbon steel with a sintered bronze layer and an acetal co-ploymer layer.
Our machining service is able to produce non-standard sizes to suit customer specific requirements.
Please contact us for information on sizes.


Features


Low friction for smooth rotation at startup and at low speed under high load conditions.
Seizure-free sliding surfaces.
Excellent shaft misalignment tolerance.
Ability to withstand impact loads.
Low friction.Damage prevention to shaft.
Virtually wear-free bearing surface with minimal lubricant.



Our VIIPLUS range of wrapped acetal bearings can hugely reduce maintenance costs on projects large and small and are stocked in metric plain, imperial plain, metric washers. Imperial washers, metric strip and imperial strip.



Typical Applications

• Rear chassis hinges
• Articulation joints
• Spindles of drills
• Gearboxes & clutches
• Grinding and milling machines

• Metal-Polymer Composite Bushing Material
• Steel Back + Porous Bronze Sinter + POM with Lubrication Indents

Bearing forms available in standard dimensions
· Cylindrical bushes
· Thrust washers
· Sliding plates

Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs
