| Price | Negotation |
| MOQ | 1 pcs |
| Delivery Time | 3 workdays |
| Brand | QRsonic |
| Place of Origin | China |
| Certification | CE |
| Model Number | QR-6015-4BZ |
| Packaging Details | Packed in carton |
| Payment Terms | T/T, Western Union |
| Supply Ability | 2000pcs per month |
| Amplitude | 10 um | Place of Origin | China |
| Output power | 2600 watt | Packaging Details | Packed in carton |
| Model Number | QR-6015-4BZ | Supply Ability | 2000pcs per month |
| Certification | CE | Brand Name | QRsonic |
| Payment Terms | T/T, Western Union | Price | Negotation |
| Delivery Time | 3 workdays | Qty of ceramic discs | 4pcs |
| Minimum Order Quantity | 1 pcs | Joint bolt | M20*1.5 |
| Frequency | 15 khz | Capacitance | 9-13.5nf |
| Products Name | Ultrasonic Welding Transducer | Ceramic disc Diameter | 60mm |

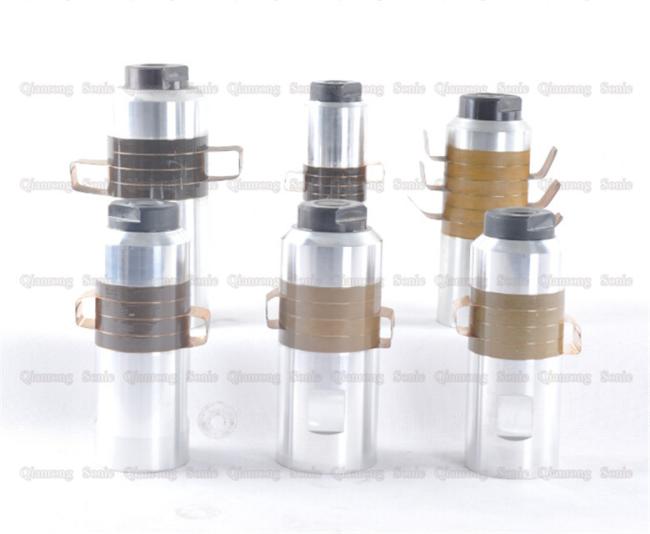

High Power 2600W Ultrasound Transducer for Removal of Fouling in Tube
Description:
Ultrasonic transducer is a device that converts electrical energy, mechanical energy or sound energy from one form of energy to another. The most mature and reliable device is the device that converts electrical energy and sound energy by piezoelectric effect. Piezoelectric transducer. The transducer is composed of a central piezoelectric ceramic component, a front and rear metal cover, a pre-stressed screw, an electrode sheet, and an insulating tube. Ultrasonic transducers are used in almost all ultrasonic equipment. Qianrong ultrasonic equipment is the source of ultrasonic titanium alloy transducers and core components.
Specifications:
| Model | QR-6015-4BZ |
| Frequency | 15 khz |
| Output power | 2600 watt |
| Joint bolt | M20*1.5 |
| Ceramic disc Diameter | 60mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 9-13.5nf |
| Amplitude | 10 um |
| Application | Plastic welding machine |
| The columnar type NTK TYPE | ||||||||
|
Item No.
|
Connect screw
|
Ceramic dia (mm)
|
Qty of Ceramic (pc) |
Frequency (khz)
|
Capacitance |
power (W)
|
||
| Yellow | Grey | Black | ||||||
| 7015-4BZ | M20 X 1.5 | 70 | 4 | 15 | 12500-14000 | 17000-19000 | 2600 | |
| 6015-4BZ | M20 X 1.5 | 60 | 4 | 15 | 8000-10000 | 10000-12000 | 12500-13500 | 2200 |
| 6015-6BZ | M20 X 1.5 | 60 | 6 | 15 | 14000-16000 | 19500-21000 | 2600 | |
| 5015-4BZ | M18 X 1.5 | 50 | 4 | 15 | 12000-13000 | 13000-14300 | 15000-17000 | 1500 |
| 4015-4BZ | M16 X 1 | 40 | 4 | 15 | 10000-11000 | 10500-11500 | 700 | |
| 5520-4BZ | M18 X 1 | 55 | 4 | 20 | 10000-11000 | 10500-11500 | 14300-20000 | 2000 |
| 5020-6BZ | M18 X 1.5 | 50 | 6 | 20 | 18500-20000 | 22500-25000 | 2000 | |
| 5020-4BZ | M18 X 1.5 | 50 | 4 | 20 | 11000-13000 | 13000-15000 | 15000-17000 | 1500 |
| 5020-2BZ | M18 X 1.5 | 50 | 2 | 20 | 6000-6500 | 6500-7000 | 8000-9000 | 800 |
| 5020-4CZ | M18 X 1.5 | 50 | 4 | 20 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5020-4HZ | M18 X 1.5 | 50 | 4 | 20 | 11000-12000 | 1500 | ||
| 5020-4BL | M18 X 1.5 | 50 | 4 | 20 | 11000-12500 | 1500 | ||
| 4020-4BZ | 1/2-20UNF | 40 | 4 | 20 | 9000-10000 | 9500-11000 | 900 | |
| 4020-2BZ | 1/2-20UNF | 40 | 2 | 20 | 4800-5500 | 500 | ||
| 3820-4BZ | 1/2-20UNF | 38 | 4 | 20 | 6500-7500 | 800 | ||
| The columnar type NTK TYPE | ||||||||
|
Item No.
|
Connect screw
|
Ceramic dia (mm)
|
Qty of Ceramic (pc) |
Frequency (khz)
|
Capacitance |
power (W)
|
||
| Yellow | Grey | Black | ||||||
| 5025-2BZ | M12 X 1 | 50 | 2 | 25 | 5000-5600 | 7000-8000 | 500 | |
| 3828-2BZ | 1/2-20UNF | 38 | 2 | 28 | 3800-4300 | 500 | ||
| 3828-4BZ | 1/2-20UNF | 38 | 4 | 28 | 7600-8500 | 10500-12000 | 800 | |
| 3028-2BZ | 3/8-24UNF | 30 | 2 | 28 | 2700-3100 | 3400-3800 | 400 | |
| 3028-4BZ | M10*1 | 30 | 4 | 28 | 6000-7000 | 700 | ||
| 2528-4FZ | M8 X 1 | 25 | 4 | 28 | 3900-4300 | 400 | ||
| 2528-2FZ | M8 X 1 | 25 | 2 | 28 | 1950-2200 | 2200-2500 | 300 | |
| 3030-4BZ | M10 | 30 | 4 | 30 | 6200-6900 | 700 | ||
| 3035-2FZ | 3/8-24UNF | 30 | 2 | 35 | 2700-3100 | 500 | ||
| 3035-4BZ | M10 X 1 | 30 | 4 | 35 | 5000-6200 | 800 | ||
| 2535-2FZ | M8 X 1 | 25 | 2 | 35 | 1900-2200 | 400 | ||
| 2540-2BZ | 3/8-24UNF | 25 | 2 | 40 | 2000-2300 | 500 | ||
| 3040-4BZ | M10 | 30 | 4 | 40 | 5500-6200 | 1000 | ||
| 3050-4BZ | M8 | 30 | 4 | 50 | 5500-6200 | 600 | ||
| 1560-2BZ | M6 X 0.75 | 15 | 2 | 60 | 700-800 | 100 | ||
