| MOQ | 1set |
| Delivery Time | 5-8 working days if no customization parts |
| Brand | PRESUN |
| Place of Origin | CHINA |
| Certification | ISO |
| Model Number | 5HPX-30 |
| Packaging Details | standard export wooden cases |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 sets per month |
| Drying zone | Stainless Steel | Usage | grain drying |
| Place of Origin | CHINA | Gross weight | 6500 kg |
| Packaging Details | standard export wooden cases | Air consumption | 10000-14000m3/h |
| Model Number | 5HPX-30 | Body dimension | 2900*2260*12700mm |
| Supply Ability | 100 sets per month | Certification | ISO |
| Brand Name | PRESUN | Payment Terms | L/C, T/T |
| Type | batch type | Price | |
| Delivery Time | 5-8 working days if no customization parts | Minimum Order Quantity | 1set |
| Guaranty | 1 yeat | Power | 21.7kw |
Technical Parameters
| Model | 5HPX-30 |
| Loading capacity | 30Tons |
| Dimension | 2900*2260*12700mm |
| Drying Type | Low Temperature circulating Type |
| Power For Fan | 5.5KW |
| Drying Rate | 0.6~1.4% |
| Heat Consumption | <30,000 KCalorie |
| Weight | 6,500KG |
| Standard Device | Moisture Meter,Conveyor,Fan |
How Did This Dryer Work?
1)Our dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface
2)After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape
3)When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again
4)The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains
5)Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target
6)Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request

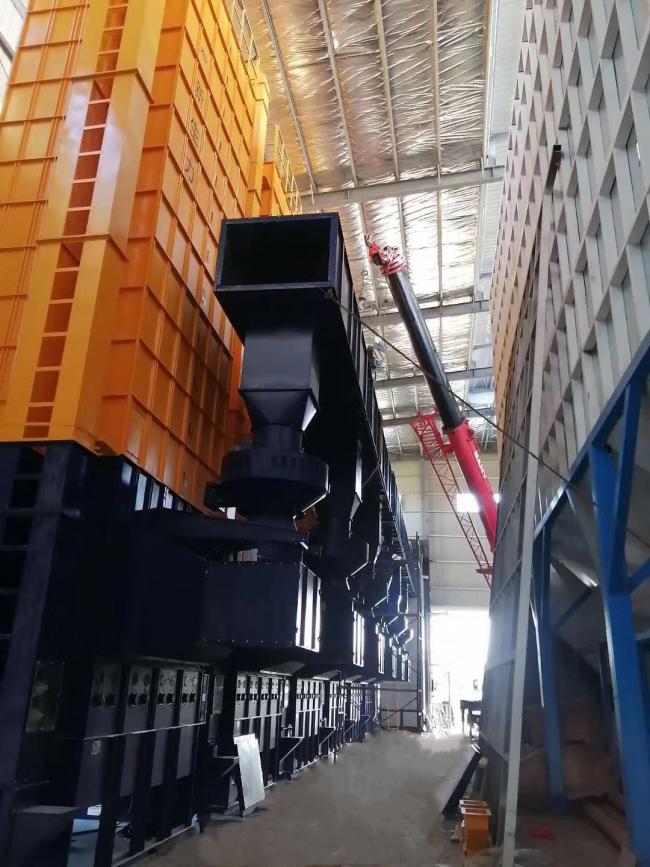

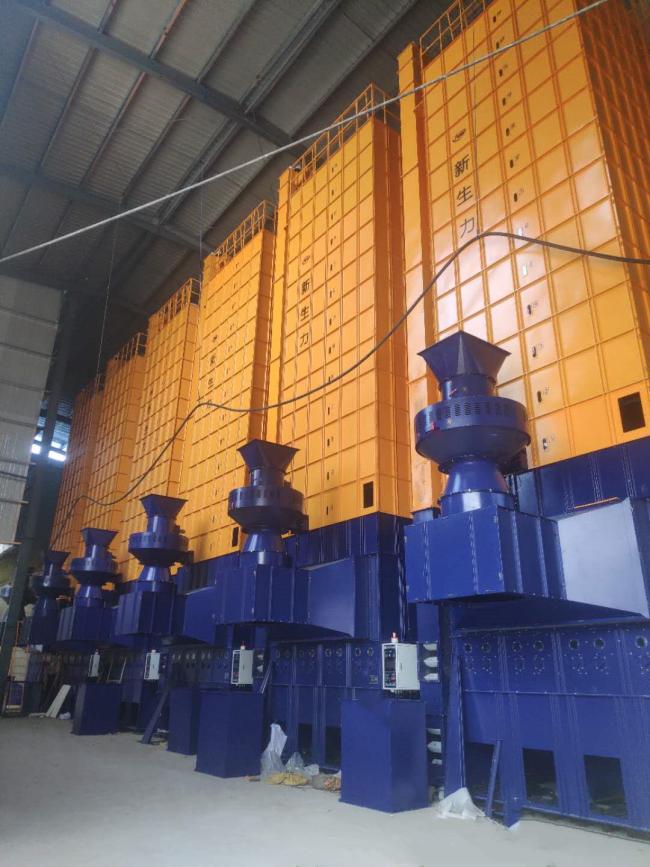

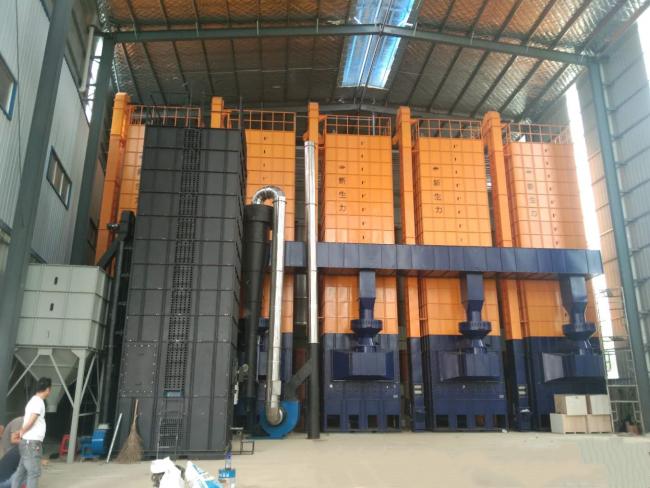

What's
The
Drying
Plant
Looks
Like?
Applicants
What We Can Offer
1)
Whole
turnkey
project
solution
included
pre-cleaning
machine,elevator,conveyor
these
essential
equipment
could
also
given
from
ourside
2)
Plant
design
service
supply
you
all
the
possibly
area
required,the
instllation
diagram
and
draws
for
consideration
3)
Instllation
and
commisioning
service
professional
engineer
woud
guide
you
for
the
assembling
and
commisioning
of
the
machine
4)
Full
time
online
service
24
hours
online
technique
service,ensure
to
solve
the
problem
immediately
5)
Enormous
spare
parts
to
support
easy
broken
spares
and
wearing
parts
would
be
send
timely,no
worry
for
drying
season
Who Are We
PRESUN is a factory dedicated to Grain Processing Machinery,about us,few items you might need to know:
1)We are located at Hefei City,Anhui Prov,China
2)Have more than 11 years experience at grain drying industry
3)10,000 square meters workshop
4)5,000 sets dryer already installed worldwide
5)600-1,000 sets dryer sold every year
6)ISO 9001 certificated company
7)Listed company since 2017
