Spraying
Color
Flexible
Mesh
Type
Privacy
Ceiling
Panel
With
Replaceable
Frame
Product
Specifications
|
Attribute
|
Value
|
|
Name
|
Privacy
Ceiling
Panel
With
Replaceable
Frame
|
|
Frame
Type
|
Replaceable
Frame
|
|
Dimensions
|
635
×
1253mm,
720
×
1220mm
|
|
Mesh
Type
|
Flexible
Cable
Mesh
|
|
Frame
Size
|
40mm×40mm
|
|
Material
|
Stainless
Steel
Mesh
|
|
Surface
Treatment
|
Spraying
Gold
Color
|
Detailed
Specifications
|
Frame
Type
|
Frame
Size
|
Mesh
Type
|
Material
|
|
Replaceable
Frame
|
40mm×40mm
|
Flexible
Cable
Rod
Mesh
|
Stainless
Steel
|
|
Max
Width
|
Max
Length
|
Surface
Treatment
|
Color
|
|
3000mm
|
8000mm
|
Spraying
Coated
|
Gold
Color
|
Flexible
Mesh
Pattern
Specifications
-
Pattern
design
support
according
to
the
application
-
Frame
design
support
according
to
the
installation
-
Surface
treatments
support,
including
PVDF,
PVD,
Spraying
-
Supply
install
accessories,
including
screw,
wall
anchor,
track,
bolt
and
others
-
Material
options:
stainless
steel,
copper,
bronze,
brass,
aluminum,
aluminum
alloy,
etc.
-
Weave
type
options:
plain
weave,
twill
weave,
dutch
weave,
plain
dutch
weave,
twill
dutch
weave,
unique
woven
method,
etc.
-
ISO9001-2008
Quality
certification
management
system
Product
Images

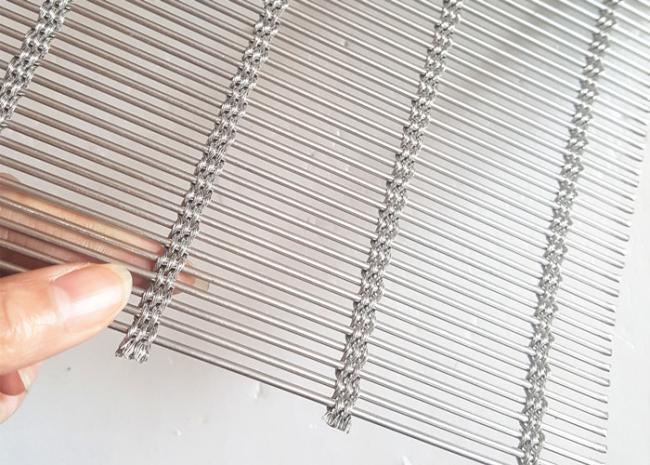

Flexible
cable
rod
mesh
Flexible
cable
rod
mesh
Flexible
cable
rod
mesh
Flexible
cable
rod
mesh
Flexible
cable
rod
mesh
Flexible
cable
rod
mesh
Standard
Specifications
|
Design
|
Open
Area
|
Cable
Wire
Dia.
|
Cable
Pitch
|
Rod
Dia.
|
Rod
Pitch
|
Thickness
|
Weight
|
|
HHZ-Q1
|
40%
|
1×1.8
mm
|
4
mm
|
1.5
mm
|
5.5
mm
|
5.1
mm
|
7.74kg/m²
|
|
HHZ-Q2
|
43%
|
1×2.5
mm
|
6
mm
|
2
mm
|
8
mm
|
5.5
mm
|
7.87kg/m²
|
|
HHZ-Q3
|
62%
|
2×2.75
mm
|
40
mm
|
4
mm
|
14.5
mm
|
9.5
mm
|
9.41kg/m²
|
|
HHZ-Q4
|
37.20%
|
3×0.5
mm
|
3.5
mm
|
0.5
mm
|
1.4
mm
|
1.3
mm
|
2.4kg/m²
|
|
HHZ-Q5
|
71%
|
3×1.6
mm
|
80
mm
|
2.5
mm
|
10
mm
|
5.7
mm
|
4.58kg/m²
|
|
HHZ-Q6
|
65%
|
3×2
mm
|
80
mm
|
3
mm
|
10
mm
|
7
mm
|
6.67kg/m²
|
|
HHZ-Q7
|
65.90%
|
3×2.75
mm
|
110
mm
|
4
mm
|
14.5
mm
|
10
mm
|
8.5kg/m²
|
|
HHZ-Q8
|
67%
|
3×3
mm
|
110
mm
|
4
mm
|
14.2
mm
|
10
mm
|
8.6kg/m²
|
|
HHZ-Q9
|
44.30%
|
4×0.75
mm
|
26.4
mm
|
1.5
mm
|
3
mm
|
3
mm
|
5.2kg/m²
|
|
HHZ-Q10
|
62%
|
4×1
mm
|
36
mm
|
2
mm
|
6.6
mm
|
4
mm
|
4.55kg/m²
|
|
HHZ-Q11
|
40%
|
4×2
mm
|
50
mm
|
3
mm
|
6
mm
|
7mm
|
11.2kg/m²
|
|
HHZ-Q12
|
42%
|
4×2
mm
|
50
mm
|
3
mm
|
6
mm
|
7
mm
|
11.8kg/m²
|
Applications
-
Space
divider
-
Wall
decoration
-
Ceiling
decoration
-
Window
curtain
-
Handrail
balustrade
-
Elevator
cab
mesh
-
Facade
cladding
-
Glass
laminated
wire
-
Sunshade
screen
-
Security
door
-
Elevator
cabins
screen
-
Floor
covering
fabrics
-
Wire
mesh
facades
-
Shade
screens
-
Architecture
ceilings
-
Metal
draperies
for
walls
-
Partition
and
isolation
screens
-
Staircases
isolation
screen
