| Price | 1$ |
| MOQ | 1PCS |
| Delivery Time | 5-7days |
| Brand | YDPB |
| Place of Origin | Luoyang，China |
| Certification | ISO |
| Model Number | CRBH 15025 A UUCCO |
| Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/month |
| Place of Origin | Luoyang，China | Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
| Material | GCr15 | Dimension | 150x210x25mm |
| Model Number | CRBH 15025 A UUCCO | Supply Ability | 1000pcs/month |
| Certification | ISO | Name | Cross-roller bearing |
| Brand Name | YDPB | Payment Terms | T/T, Western Union, MoneyGram |
| Price | 1$ | Delivery Time | 5-7days |
| Minimum Order Quantity | 1PCS | Model | CRBH 15025 A UUCCO |
| Structure | Crossed Cylindrical Roller bearings | Application | Robots arm/machine tool |
Crossed
Roller
Bearings
Parameters
Model
number-
CRBH
A
15025 UUCCO
Inner
ring(mm)-
150
Outer
ring(mm)-
210
Width(mm)-
25
Weight(Kg)-
3.16
Materials-
GCR15/GCR15SiMn
Precision
grade-
P5/P4/P2
Lubrication
type-
Grease
lubrication
Rotating
part-
Inner
ring/Outer
ring
Load
direction-
Multi-load
Structure-
Integrated
Inner/Outer
Ring
Series
Model
No.
CRBH5013A,CRBH6013A,CRBH7013A,CRBH8016A,CRBH9016A,CRBH10020A,CRBH11020A,CRBH12025A,CRBH13025A,CRBH14025A,CRBH15025A,CRBH20025A,CRBH25025A

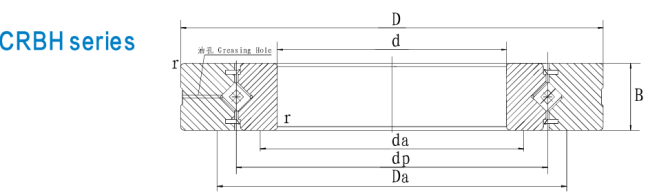

CRBH series Crossed Roller Bearings Parameters
Structure
| shaft diameter | Identification number | Main dimensious(mm) | Mounting dimensions (mm) | Basic static load rating | Basic static load rating | weight | |||||
| Inner diameter | outer diameter | width | r min | da | Da | C KN | Co KN | Kg | |||
| d | D | B | |||||||||
| 50 | CRBH 5013A | CRBH 5013A UU | 50 | 80 | 13 | 0.6 | 56 | 74 | 1.73 | 2.09 | 0.29 |
| 60 | CRBH 6013A | CRBH 6013A UU | 60 | 90 | 13 | 0.6 | 66 | 84 | 1.88 | 2.43 | 0.33 |
| 70 | CRBH 7013A | CRBH 7013A UU | 70 | 100 | 13 | 0.6 | 76 | 94 | 2.01 | 2.77 | 0.38 |
| 80 | CRBH 8016A | CRBH 8016A UU | 80 | 120 | 16 | 0.6 | 88 | 112 | 3.21 | 4.34 | 0.74 |
| 90 | CRBH 9016A | CRBH 9016A UU | 90 | 130 | 16 | 0.6 | 98 | 122 | 3.31 | 4.68 | 0.81 |
| 100 | CRBH 10020A | CRBH 10020A UU | 100 | 150 | 20 | 0.6 | 110 | 140 | 5.09 | 7.22 | 1.45 |
| 110 | CRBH 11020A | CRBH 11020A UU | 110 | 160 | 20 | 0.6 | 120 | 150 | 5.24 | 7.74 | 1.56 |
| 120 | CRBH 12025A | CRBH 12025A UU | 120 | 180 | 25 | 1 | 132 | 168 | 7.34 | 10.8 | 2.62 |
| 130 | CRBH 13025A | CRBH 13025A UU | 130 | 190 | 25 | 1 | 142 | 178 | 7.59 | 11.5 | 2.82 |
| 140 | CRBH 14025A | CRBH 14025A UU | 140 | 200 | 25 | 1 | 152 | 188 | 8.19 | 13 | 2.96 |
| 150 | CRBH 15025A | CRBH 15025A UU | 150 | 210 | 25 | 1 | 162 | 198 | 8.43 | 13.8 | 3.16 |
| 200 | CRBH 20025A | CRBH 20025A UU | 200 | 260 | 25 | 1 | 212 | 248 | 9.23 | 16.9 | 4 |
| 250 | CRBH 25025A | CRBH 25025A UU | 250 | 310 | 25 | 1.5 | 262 | 298 | 10.2 | 20.7 | 4.97 |
Drawings and other parameters ,pls contact us free, thanks
