Front Back Access Outdoor 19 Rack Enclosure For Temperature Control Base Station

Price Negotiable
MOQ 1PC
Delivery Time 15 to 20 days
Brand ESTEL
Place of Origin China
Certification ISO9001
Model Number ET7080100-EQ-2D
Packaging Details Wooden Case with Pallet
Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 1800PCS per month

Product Details

Product Specification

Place of Origin China Packaging Details Wooden Case with Pallet
Maintenance mode Front back access Color Grey RAL7035 (support custom made)
IP Level IP55 Material single galvanized steel plate + PEF insulation
Cooling mode AC220V 50Hz 500W compressor air conditioner Dimension 700mm×800mm×1000mm(W×D×H)
Model Number ET7080100-EQ-2D Supply Ability 1800PCS per month
Certification ISO9001 Surface Outdoor powder coating, anti-corrosion
Brand Name ESTEL Payment Terms T/T, L/C, D/A, D/P, Western Union, MoneyGram
19 inch rack 16U Delivery Time 15 to 20 days
Minimum Order Quantity 1PC

Product Description

Front Back Access Outdoor 19 Rack Enclosure For Temperature Control Base Station



Temperature Control Base Station Cabinet Self Cooling 19 Inch Front Back Access Telecom Equipment Cabinet Outdoor Use



Introduction



The outdoor telecom cabinet ET7080100-EQ-2D has been designed to house sensitive electronic equipments for use in telecommunications (such as satellite modem, modem redundancy controller, Ethernet switch, Ethernet router, etc.), power, education, bank, radio and televison, automatic system, security monitoring, transportation and rail infrastructure projects including SISS, CIS, CCTV, communications, networking etc.





Feature of Oudoor Cabinet



  • Outdoor anti corrosion powder coating
  • The cabinet is dustproof, sunproof and rainproof, can be used in outdoor harsh environment
  • IP level: IP55
  • Standard 19“ rack for installation
  • Cabinet cooling: air conditioner
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding
  • High integration, compact structure, easy installation and migration on later stage
  • Anti-theft three point lock, excellent keyhole protection device
  • All the screws&nuts are stainless steel material
  • Support full design according to customer’s requirement
  • Full protection: door sensor, smoke sensor, water sensor and temperature & humidity sensor, environmental monitoring system provides real alarm



Technical Parameters







Configuration Item Technical Parameter
Cabinet Body Model ET7080100-EQ-2D
Size

External Size: 700mm×800mm×1000mm(W×D×H)

Internal Space: 19” 16U.

Component The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation method is floor mounted.
Material Galvanized steel, single wall with heat insulation
Structure

(1) One front door and one rear door

(2) Anti-theft three point lock(support padlock)

(3) Door stopper is installed for keep door when door is open

(4) Door with good sealing, waterproof and dustproof

(5) Include standard 16U 19“ rack inside the cabinet

(6) Equipped with cable manager

(7) Cable inlets at the bottom of cabinet

Surface Treatment Outdoor anti-corrosion powder coating
Color Grey RAL7035
Ingress Protection IP55
Working Temperature -40°C~+75°C
Cooling Method Air Conditioner

Cooling Capacity: 500W

Power Supply: 220VAC, 50Hz

On front door

Monitoring (Optional) Environment Monitoring System

1× environment monitoring unit,19”, 1U; AC220V, SNMP communication

1× smoke sensor,

1× water sensor,

1× temperature&humidity sensor,

1× door sensor.

Power Distribution (Optional) Power Distribution Unit

Grade B Lightning Proof

AC Input: 63A/2P ×1;

AC Output: 16A/1P×4;

DC Output: 16A/1P×4.

Height: 4U

Can custom made based on user’s requirement.

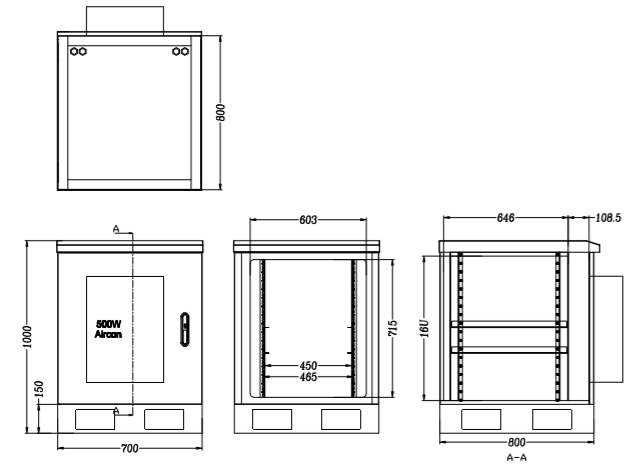

Cabinet Drawing

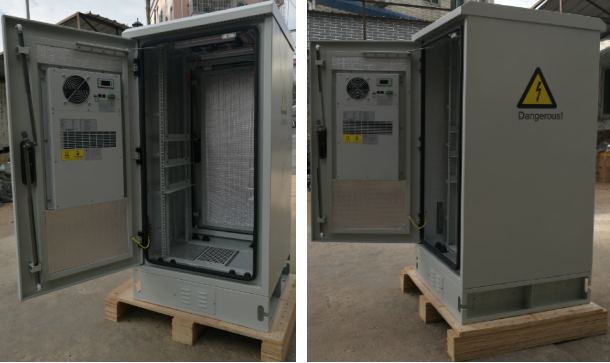

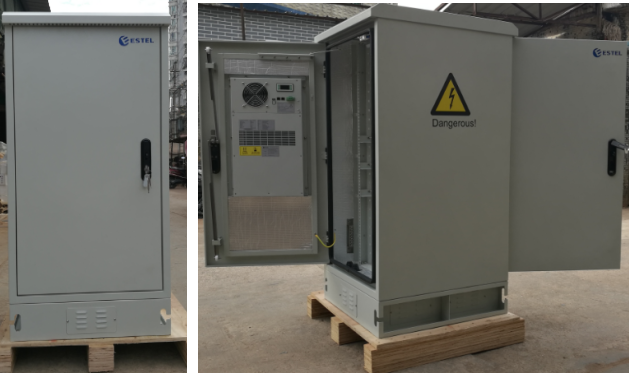

Cabinet Pictures







Our Qualified Certificate

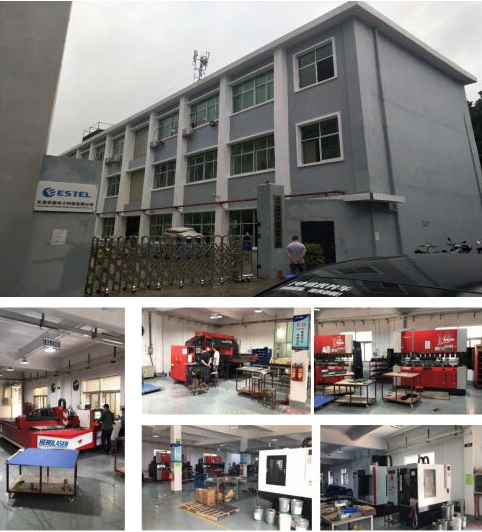

Our Factory Show







Tianjin Estel Electronic Science and Technology Co.,Ltd

Manufacturer, Distributor/Wholesaler, Exporter
  • Annual Revenue: 15 Million-20 Million
  • Employees: 101~200
  • Year Established: 2002
