| Price | negotiation |
| MOQ | 1 |
| Delivery Time | 15-20 working days |
| Brand | ESTEL |
| Place of Origin | Shenzhen, China (Mainland) |
| Certification | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number | ET9090210-UP-B1 |
| Packaging Details | wooden case |
| Payment Terms | T/T, L/C, DA, DP, etc |
| Supply Ability | 7,000 sets per month |
| Place of Origin | Shenzhen, China (Mainland) | Internal size | W×D×H 800×800×1800mm (19”,40U) |
| Packaging Details | wooden case | Material | cold rolled steel sheet +45 mm Sandwich structure panel |
| Model Number | ET9090210-UP-B1 | Supply Ability | 7,000 sets per month |
| Certification | ISO9001, CE, 3C, FCC, TLC, IP55 | Applicaiton | outdoor telecom base station Etc |
| Cabinet Layout | one compartment for equipment and battery | Brand Name | ESTEL |
| Payment Terms | T/T, L/C, DA, DP, etc | Price | negotiation |
| Delivery Time | 15-20 working days | Minimum Order Quantity | 1 |
| Illumination | DC48V LED lamp | Coating | anti-corrosion outdoor powder coating |
| Accessories Options | PDU, rectifier system, environment monitoring system |
IP55 Anti-corrosion Thermal Insulated Waterproof Outdoor Power Cabinet / Air Conditioner Equipment Battery Cabinet
1. Feature
(1) Fine waterproof, dust proof:
Sealed by import seal belt, waterproof design and air filter instrument realize the efficient protection,IP 55
(2) Temperature and humidity solution:
We adopt different components to control temperature and humidity to ensure the best working condition inside the cabinet.
(3) Anti-corruption solution:
The surface of the cabinet use polyester anti-corrosive outdoor powder coating , can protect from UV and corrosion
(4) Machine protection solution:
The cabinet is designed specifically to protect it from human damage, earthquick and other damages.
(5) EMC protection
Dealed with hydrochloric acid, use EMC seal belt , special earthing to avoid and reduce creepage.
2. Configuration List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension:W×D×H 900×900×2100mm Internal Dimension: W×D×H 800×800×1800mm (19”,40U) (2) One compartment: equipment and battery compartment (3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: cold rolled steel sheet +45 mm Sandwich structure panel (5) Heat insulation performance: thermal conductivity<0.472W/m2.K> (6) Internal structure: 19 inch rack +one layer battery shelf (7) Base height: 200mm (8) Cable entry: cabinet bottomφ50*8 (9) Anti-theft design: embedded door,embedded hinge, three point lock (10) Protection level: IP55 (11) Color: RAL7035, professional outdoor powder coating (12) Including grounding bar, DC48V lamp, FSU guide rail
|
| 2 | Air Conditioner | 1 | Set |
Cooling capacity: 1500W, Power supply: AC220V, 50HZ, |
| 3 | Auxiliary Direct Ventilation Fans | 1 | PC | DC48V |
| 4 | Environment Monitoring System(Optional) | 1 | Set |
Environment Monitoring Unit *1 ,DC48V,19", 1U; SNMP communication Water Sensor *1 Smoke Sensor *1 Temperature and Humidity Sensor *1 Door Sensor *1 |
| 5 | AC Power Distribution Unit | 1 | Set |
19” rack mout, 4U height AC input: 63A/2P*2 AC/SPD:30-60KA/2P*1; AC output: 63A/1P*1, 32A/1P*1, 16A/1P*3, 3 hole socket*1 |
| 6 | Rectifier System | 1 | Set | GPE48200E 6U |
| 7 | Lead-acid Battery | 1 | Bank | 48V 150Ah |
| 8 | ODF | 1 | Set | FC 48 core |
| 9 | DCDU | 1 | Set |
Input: DC48V 100A Output: DC48V 20A (9 way) |
| 10 | Package | 1 | Set | Wooden Case |

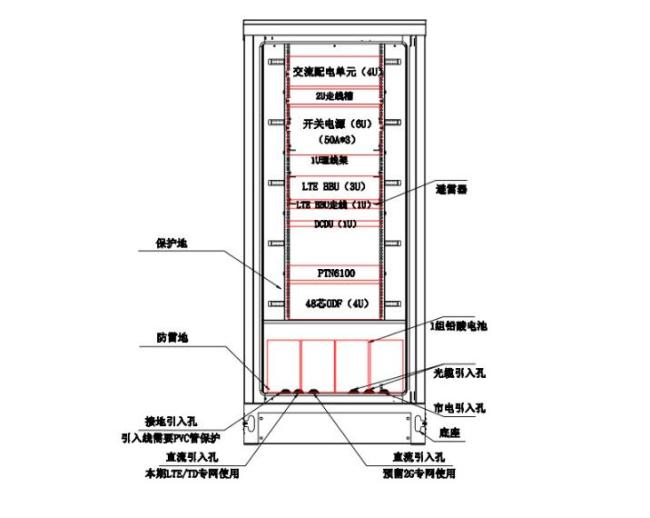

3. Cabinet Layout

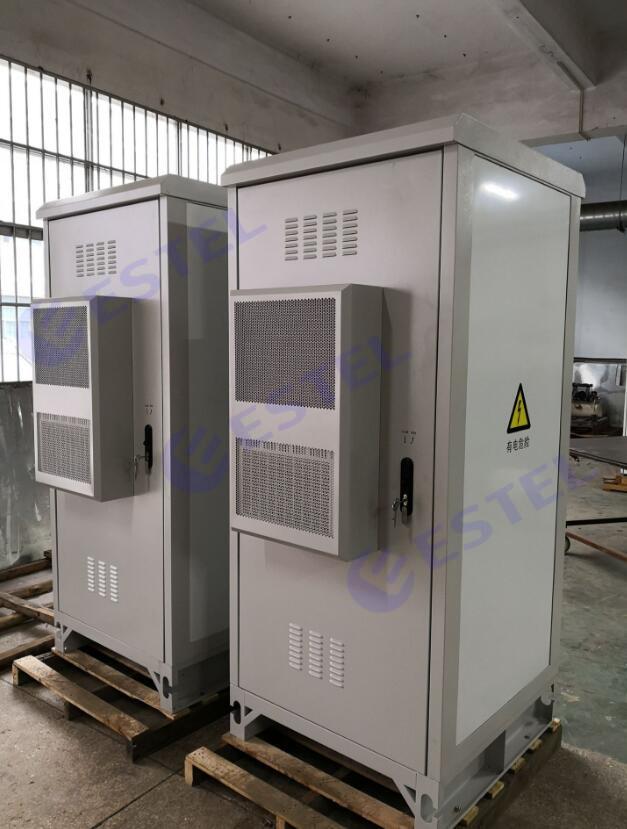

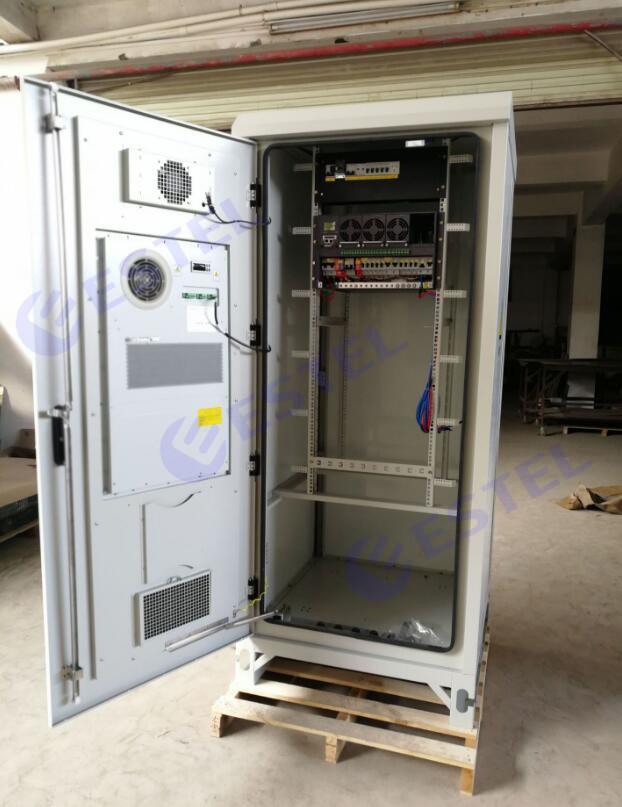

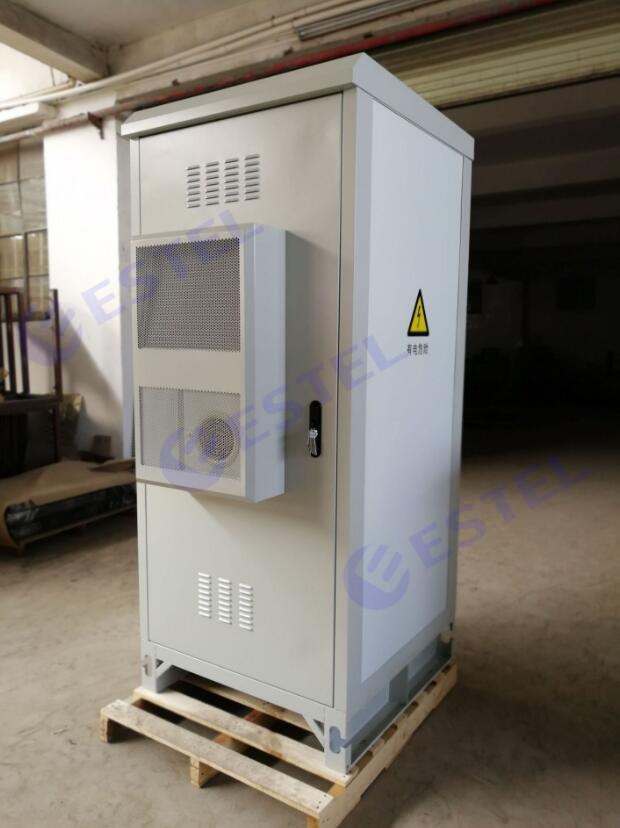

4. Cabinet Picture
