| Price | FOB $1~1000, Depend on Order Quantity |
| MOQ | 1 pc |
| Delivery Time | 5~20 Days |
| Brand | CNOEC, OPTO-EDU |
| Place of Origin | China |
| Certification | CE, Rohs |
| Model Number | A59.3509 |
| Packaging Details | Carton Packing, For Export Transportation |
| Payment Terms | T/T, West Union, Paypal |
| Supply Ability | 5000 pcs/ Month |
| Place of Origin | China | Packaging Details | Carton Packing, For Export Transportation |
| LCD Screen | 9" LCD, Resolution 1024x600 High Clearance Screen | Pixel Size | 2.0x2.0um |
| Model Number | A59.3509 | Supply Ability | 5000 pcs/ Month |
| Certification | CE, Rohs | Power Supply | DC 12V/2A Power Adapter, Input 100-240V AC |
| Brand Name | CNOEC, OPTO-EDU | Payment Terms | T/T, West Union, Paypal |
| Price | FOB $1~1000, Depend on Order Quantity | Delivery Time | 5~20 Days |
| Minimum Order Quantity | 1 pc | Output | USB 2.0 Type-A, TF Card |
| Sensor | 1/2.8" Sony Star Light Level CMOS Sensor | Resolution | 5.0M CMOS |

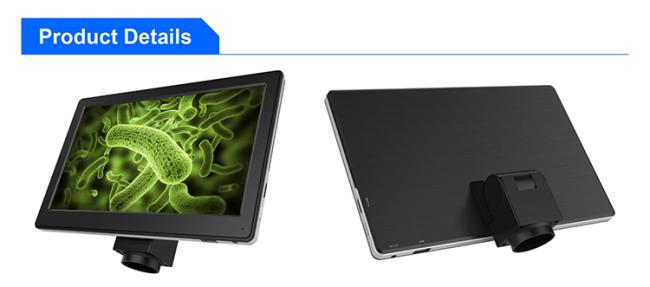

OPTO-EDU A59.3509 9" LCD Digital Camera USB2.0 Mouse Measure 5.0M
5.0M, 9" LCD, 1/2.8" CMOS, Screen Resolution 1024*600, USB2.0 Real Time Image Output, TF Card, USB Mouse Control Menu For Measure, DC12V/2A, 100~240V.
9" LCD Screen High Resolution 1024*600 Pixels
5.0M Digital Camera 1/2.8" CMOS Sony Sensor
USB2.0 Real Time Image Output + TF Card Storage
USB Mouse Control Menu For Measure Function
DC12V/2A, 100~240V Power Adapter
| Items | A59.3509 9" LCD Digital Camera, USB+Mouse Measure, 5.0M |
| Sensor | 1/2.8" Sony Star Light Level CMOS Sensor |
| Resolution | 5.0M CMOS |
| LCD Screen | 9" LCD, Resolution 1024x600 High Clearance Screen |

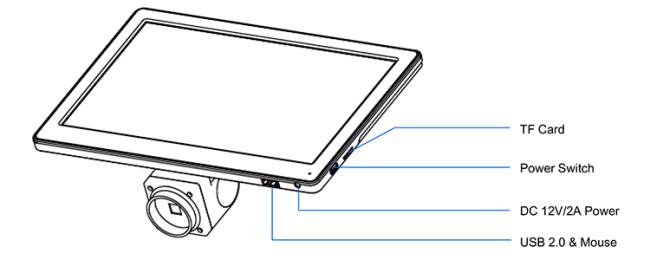

| Output | USB 2.0 Type-A, TF Card |
| Pixel Size | 2.0x2.0um |
| Power Supply | DC 12V/2A Power Adapter, Input 100-240V AC |
| Function | Photo, Video, Meaure, Compare |
| Support USB Mouse Control To Capture Photo, Video, Measure, Setting | |

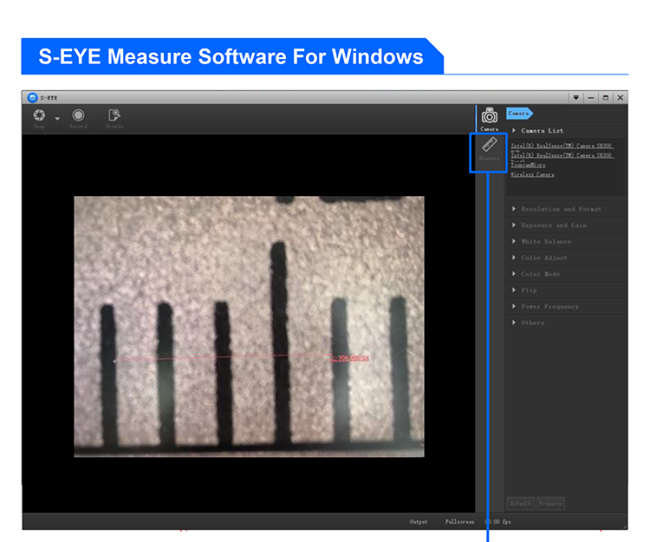

| USB 2.0 To Win 7, Win10 System, Software S-Eye Included | |
| Brightness, Contrast, Exposure, White Balance Adjustable | |
| 10x Digital Zoom, 4 Split/ 2 Split Windows Image Compae | |
| Storage To TF Card | |
| Cross Line With Scale, Calibrated | |
| Net Line 8 Kinds, Width & Color Adjustable | |

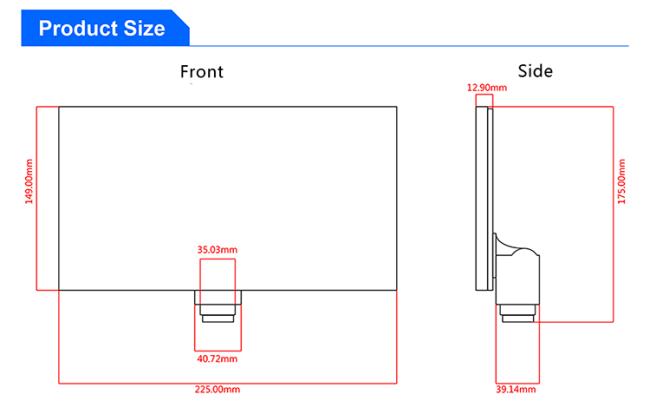

| Size / Weight | Product Size 225x52x175mm, Net Weight 0.7Kg |

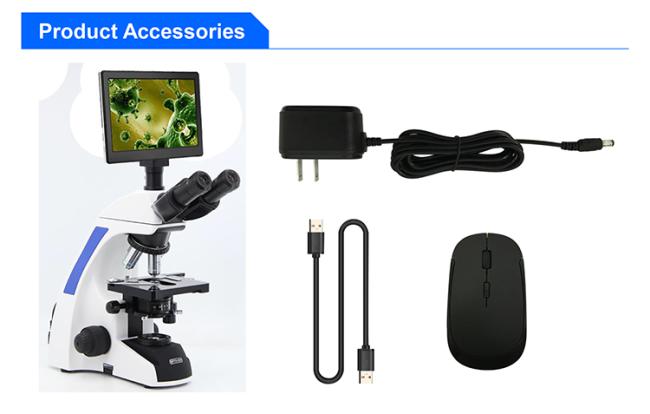

| Standard Package | LCD Camera, USB 2.0 Cable, Mouse, DC12V Power Adapter |
|
USB
Mouse
Control Operation Manual |
1.
Insert
the
mouse
into
the
camera
Type-A
USB
2.0
port,
connect
12V
power
supply
to

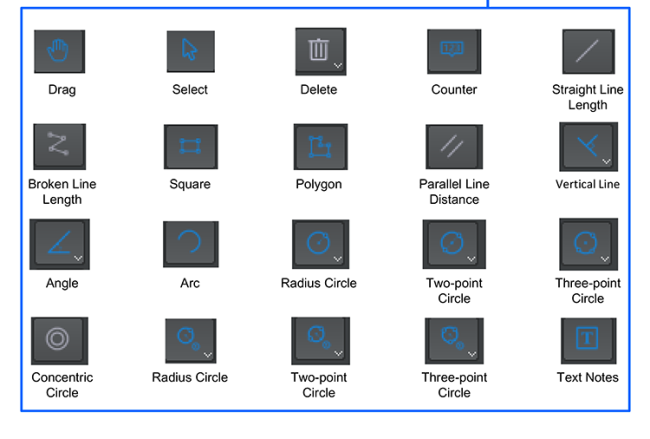

camera. 2. Turn on the power switch, when the camera is running, the LED light turns blue 3. Move the mouse to the top left corner of the screen to call up the MAIN MENU, including icon : Take Photo, Record Video, Preview, Measure, Setting. 4. Move the mouse to the middle position at the bottom of the screen to call up the QUICK MENU, including icon: Zoom In, Zoom Out, Up/Dow Mirror, Left/Right Mirror, Black/White, HDR, Freeze, Net, Font, 2 Split, 4 Split 5. Click the MEASURE icon to pop up the measure window, which support over 20 kinds of measurement graphics. 6. Click the EDIT button and fill in the name to of new ruler to CALIBRATE. Move the mouse to the corresponding standard scale in the image display window and draw a standard length scale line. Then fill in the length column and click SAVE to complete the calibration setting. If you want to add more ruler, just repeat above steps. 7.Click mm/PX to open or close the screen scale. 8. If the USB port is directly connected to the computer, the screen and the computer can be displayed synchronously (the USB cable must be connected to the computer before the device is powered on) |
